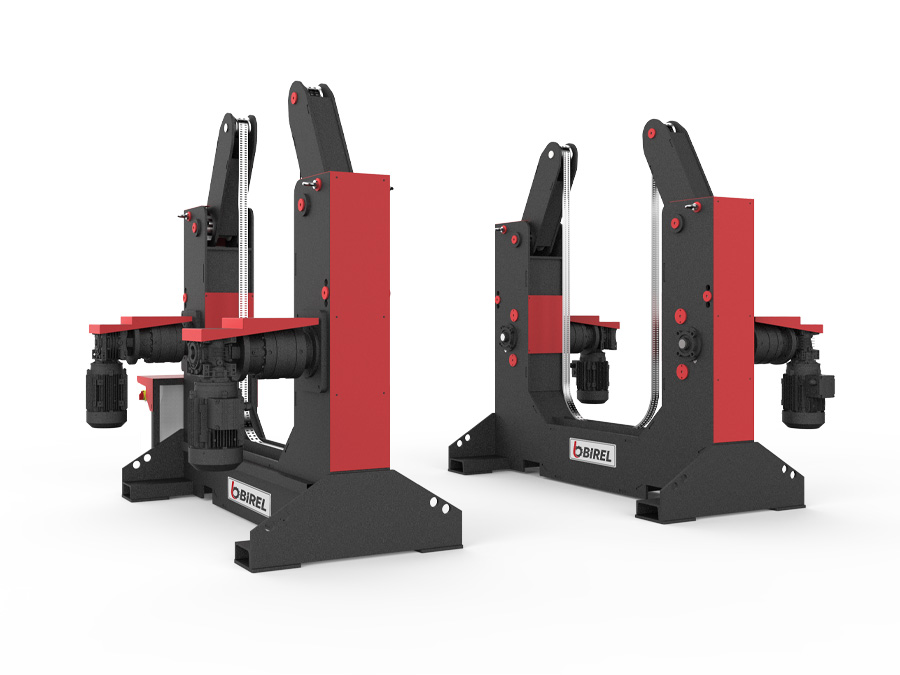

Chassis Welding Rotator – BZC

Purpose of Chassis Welding Rotators is rotating and positioning work pieces with planar section. The total handling and rotation tonnage of both unit is the capacity of the model.
General Features
  • Purpose of Chassis Welding Rotators is rotating and positioning work pieces with planar section.
  • The total handling and rotation tonnage of both unit is the capacity of the model.
  • Both unit can be controlled seperately.

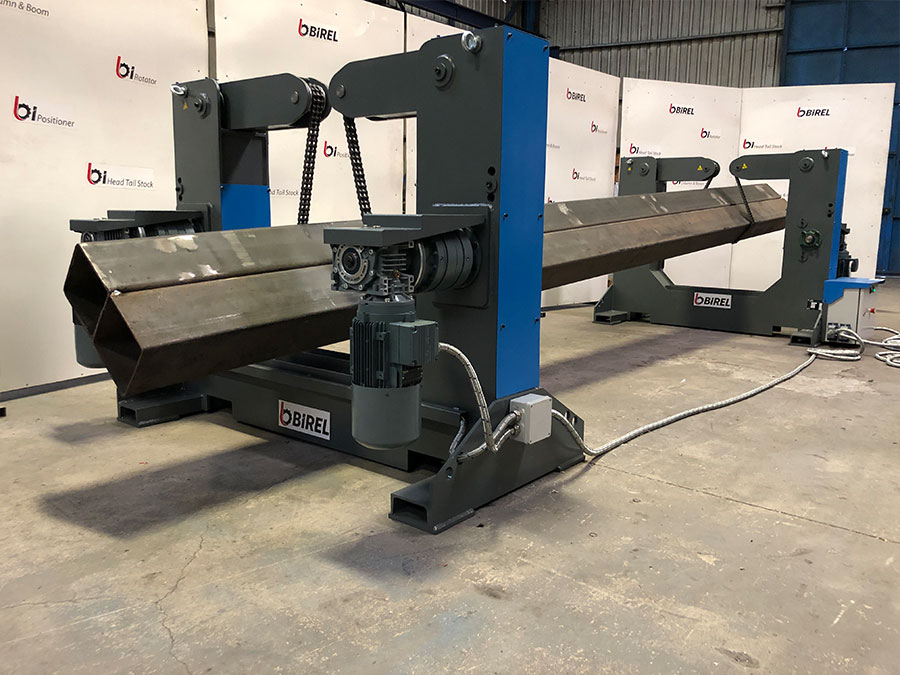

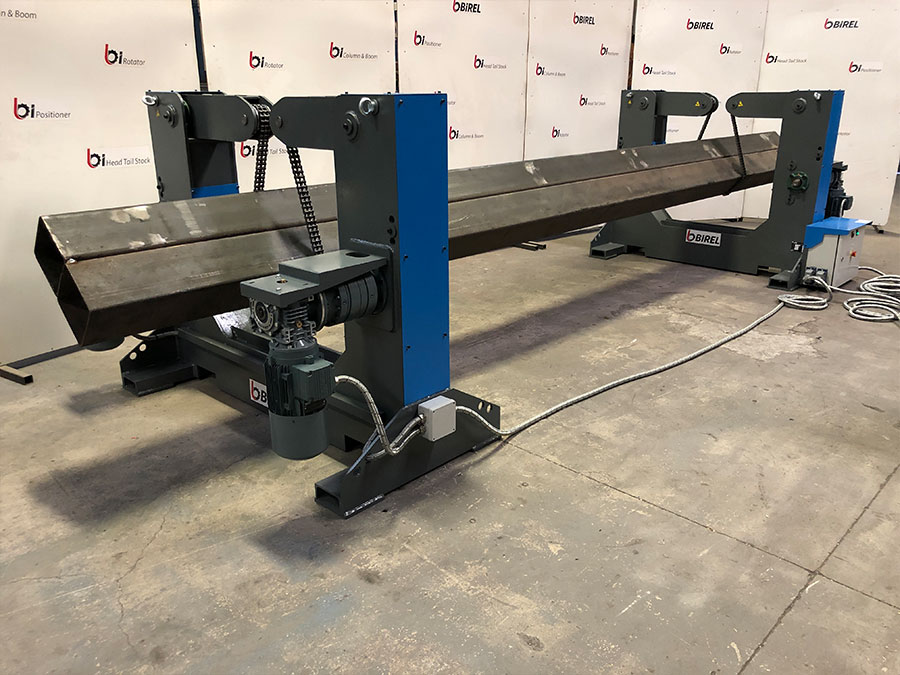

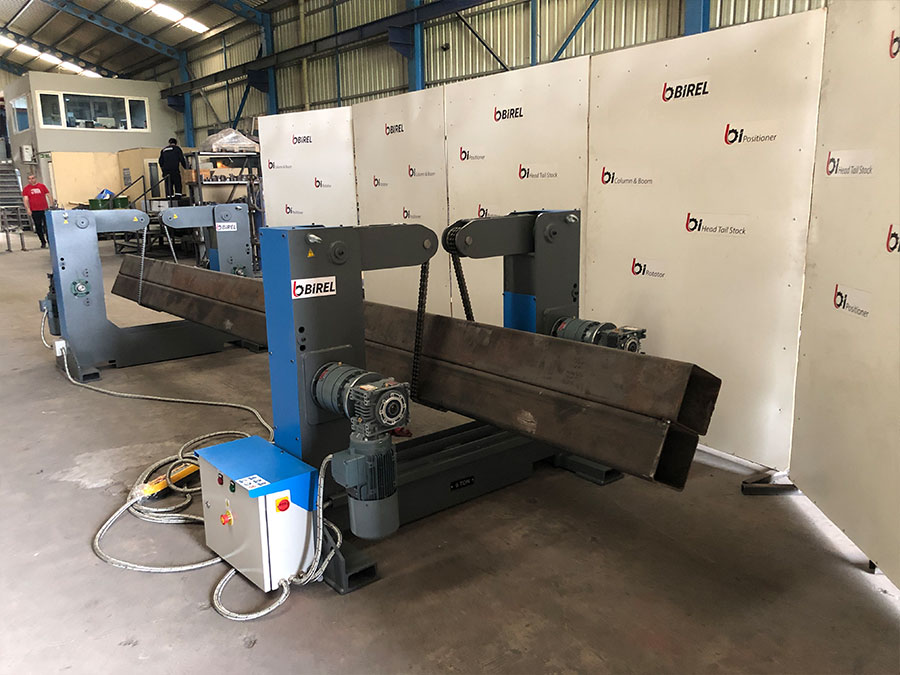

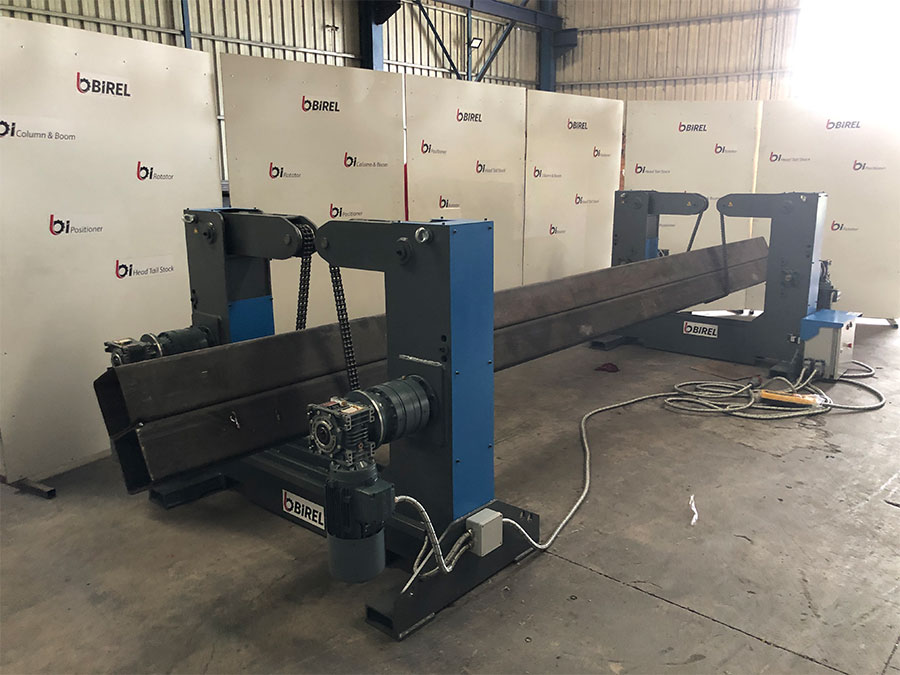

  • Over an endless chain, Providing rotation movement to workpiece, together with suitable positioning ,required welding edge and assembly plane could be generated.
  • It is possible to adjust the height of the piece placed on the machine. this provides more convenience to the operator during welding.
  • Operators can easily rotate the workpiece placed on the chain clockwise (CW) or counterclockwise(CCW), accurately aligned. They can also be moved up-down to provide the intended height.
  • Chain Rotators set includes of 2 pcs. driven units. Number of units can be augmented according to the application and weight terms.
  • Both of the units which constitute the chain rotator set are driven and these two unit can be operated in synchronization or seperately. Thus, angular height setting of the work piece is enabled.
  • Birel Makine manufactures 5 and 10 ton chain rotators in its standard, However, between these tonnages special custom production can be manufactured.
Standart Features
  • Adjustable worktable rotation speed.
  • Rotational Speed Dijital display on Electrical Cabinet.
  • 5 mt. Command Cable.
  • 5 mt.Power Cable.
  • Brake & Fan Cooled Motor.
  • Standard Machine Colors:
    • Chassis RAL 7011(Grey)
    • Sheet Covers:RAL 3020(Red )
  • Power Supply: 380V – (3 phase+Neutral +Earthing).
  • One (1) Year Warranty (wearing parts out of warranty).
Advantages
  • Birel Machinery as standard provides BZC model, in capacity of 5 – 10 ton.
  • Automatic closing of chain levers upon loading workpiece.

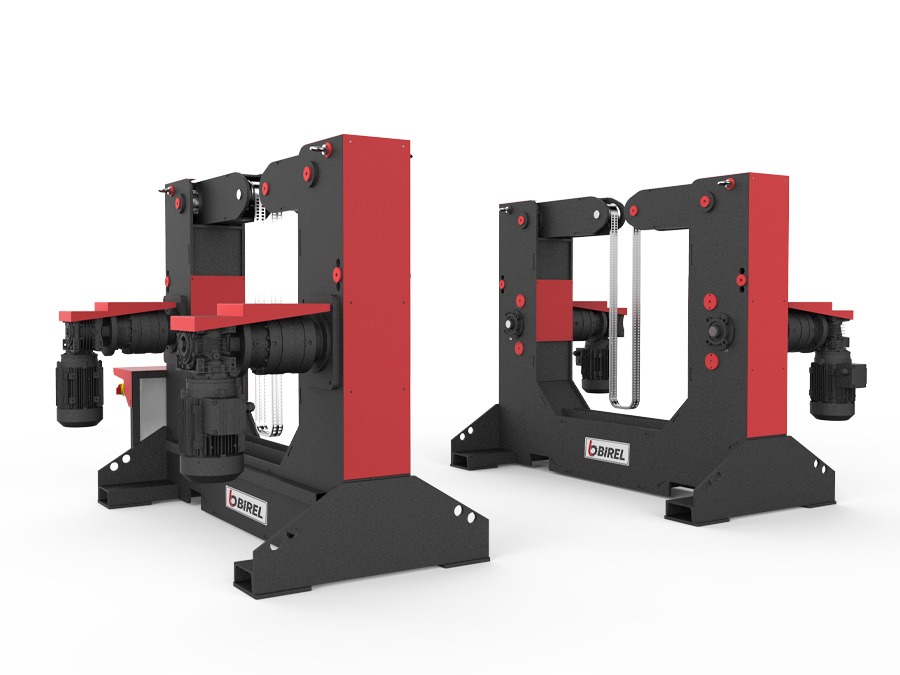

  • Birel Chain Rotators allow easy loading by opening the chain arms.
  • Both unit could function simultaneously by usingMaster Panel(Optional).
  • Positioning of Up and Down Movement.
  • Robust chain gear structure.
  • Motor with brake and forced fan cooling.
  • Birel Machinery, out of these standard capacities, according to customer standards & requirements ,can present quotation against the machine revision process or fulfill customer request against new designs.
  • For any special request or project, Please do not hesitate to contact with us.
Optional Features
Double Foot Pedal with Stick and Stop (3m)

DFPSE

Double Foot Pedal with Stick and Stop (3m)

OHC

Overhead Hangable Control

Master Panel

MP

Master Panel

Wireless Remote Control

WRC

Wireless Remote Control

Brochures

EN

Download Product Brochure

TR

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Ask From:
FAQ

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

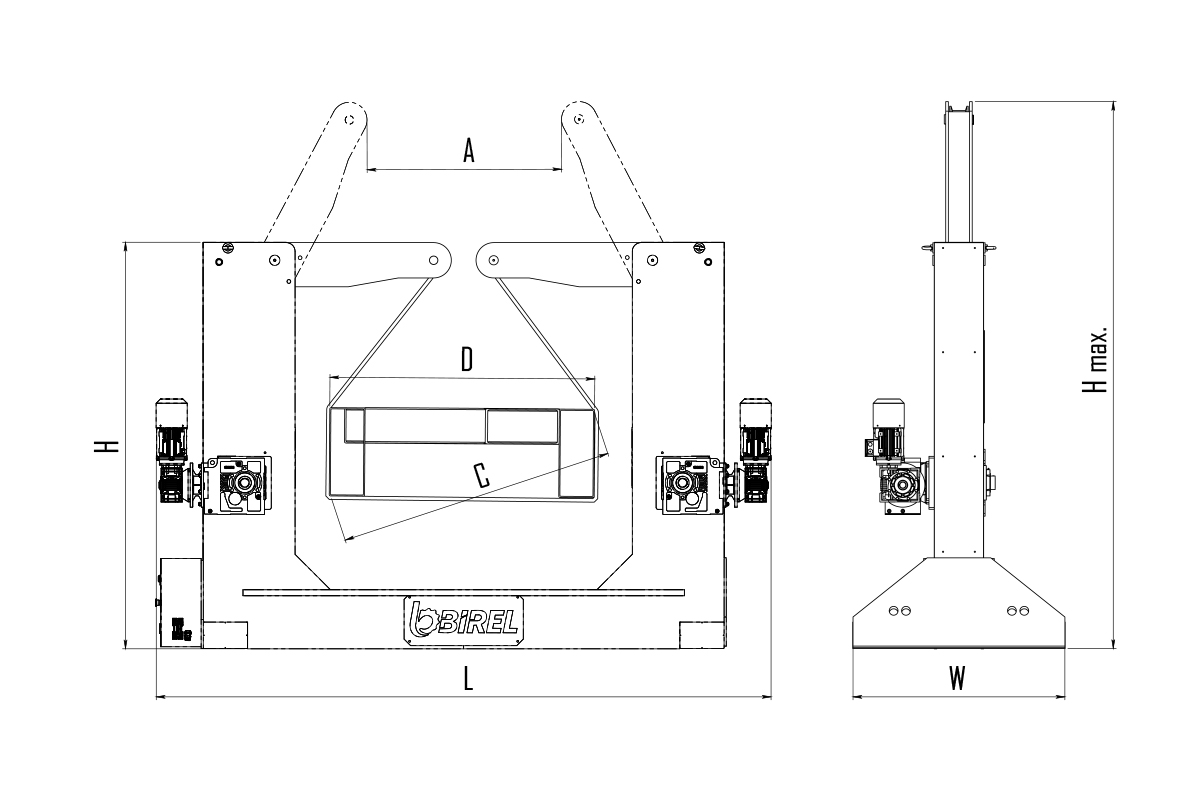

Technical Data

BZC

Sym

Unit

BZC-5

BZC-10

Capacity

ton

5

10

Max. Load (Drive Unit)

t/unit

2,5

5

Max. Load (idler unit)


t/unit

2,5

5

Rotation Speed


rpm

2

4,3

Workpiece Width

D

mm

500

1100

Max.Rotating Diagonal

C


mm

600

1500

Distance between Rolls

A

mm

600

1150

Base Overall Length

L

mm

1910

3500

Base Overall Width

W

mm

800

1200

Height (Legs Down)

H

mm

1300

2300

Height (Legs Upper)

Hmax

mm

1700

3100

Width (Drive Unit)

W1

mm

800

1200

Width (idler Unit)

W2

mm

800

1200

Motor Power

kW

1,1 x 4

1,5 x 4

Weight

kg

1220

3950
