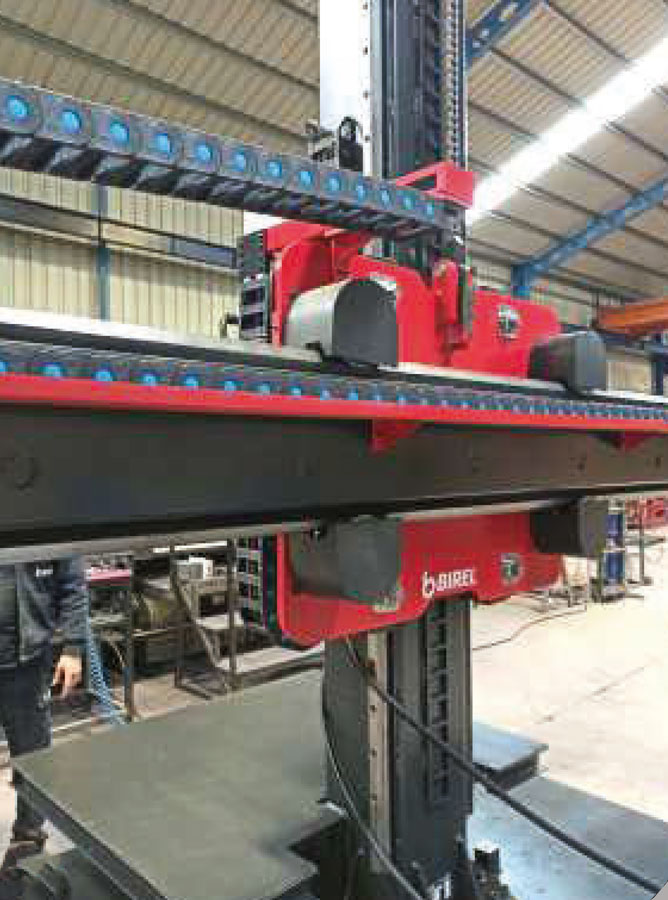

Column and Boom Welding Machine – BCBM S

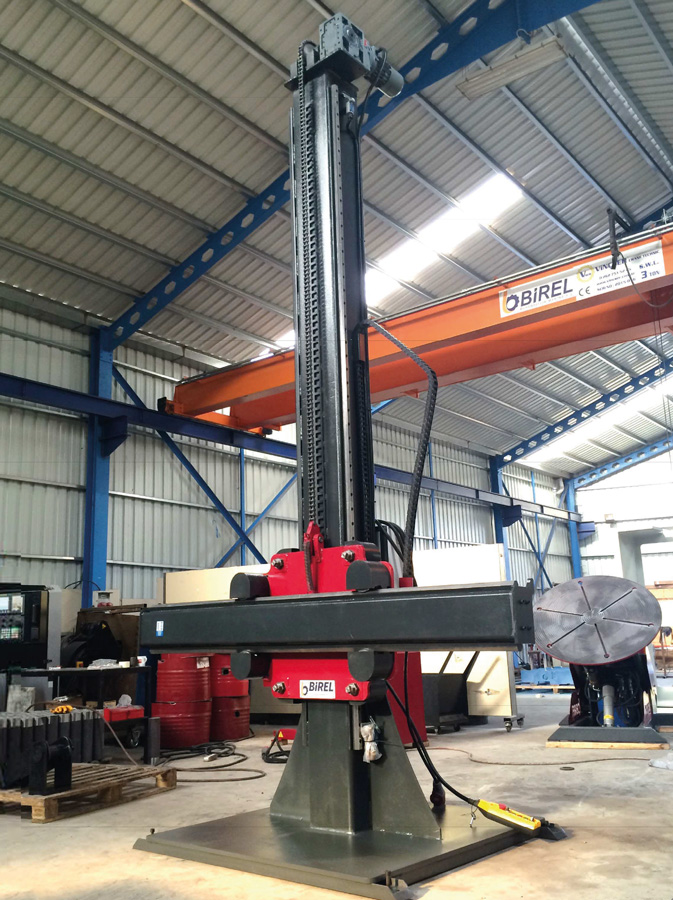

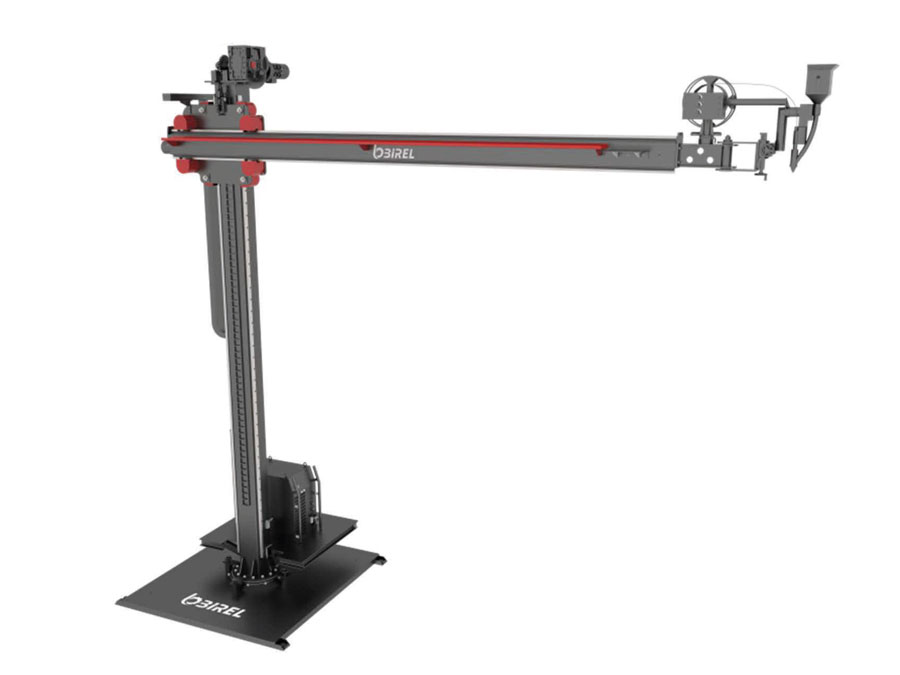

BCBM S Column and Boom Welding Machine is stationary Version Column-Boom System of BCBM.

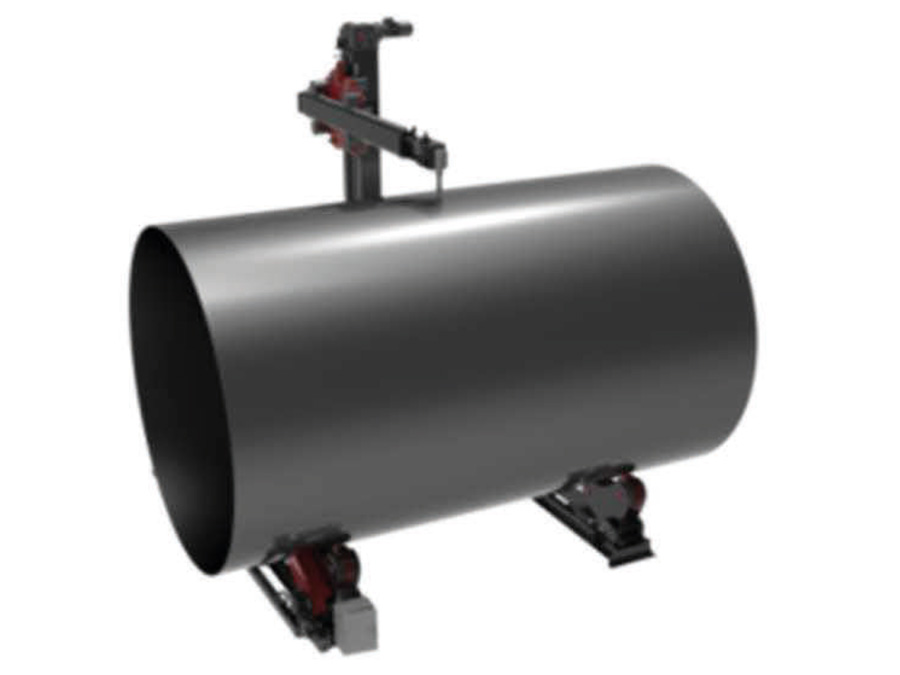

BCBM Column and Boom Welding Machine, Although can perform welding independently for workpieces, it can also perform circular or lengthwise welding using rotator or positioner.
Allow reducing the production time and getting tired of operator , as well as, Increase the accuracy and the amount of continuous welding that an operator can do.
Welding types that can be used by the system; could be SAW, MIG, MAG, etc
Column-Boom systems over ground ;
i ) As standard Fixed to ground type is provided.
ii) Optionally Automatic Movement over Rails can be manufactured.
Column Rotary System ;
i) As standard, Manual Rotation by means of Butt bearing is provided.
ii) Optionally, Automatic Motor Driven type can be manufactured.

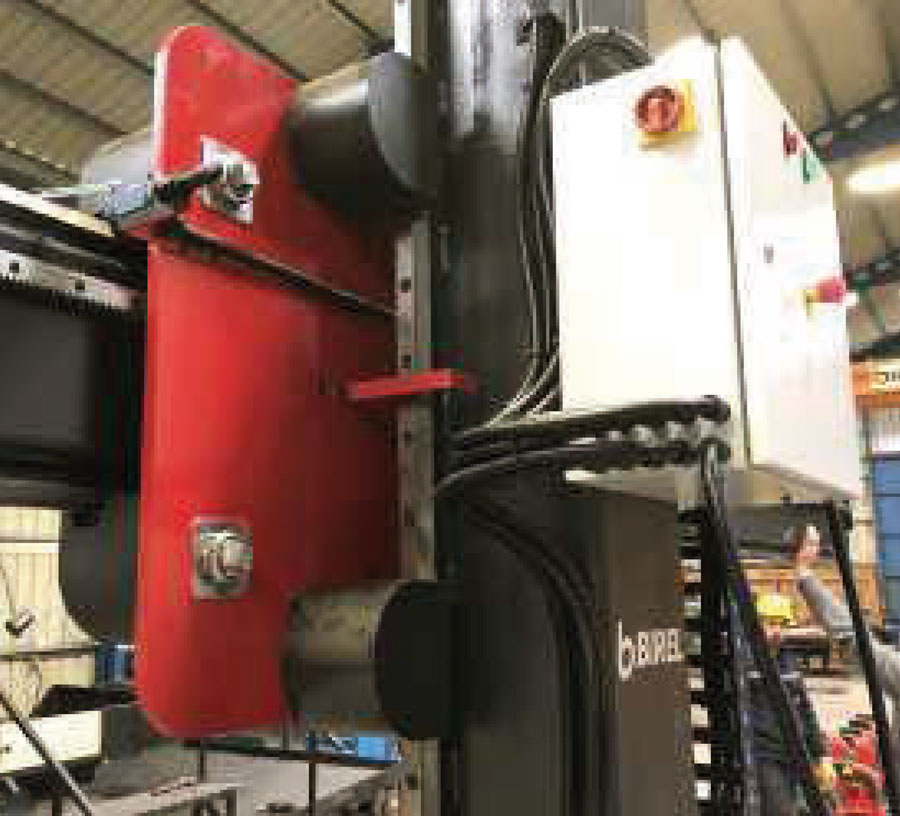

Optional Control Units

Birel Machinery as standard provides the following models: BCBM-3×3│BCBM-4×4│BCBM-5×5│BCBM-6×6
Birel Machinery, out of these standard capacities, according to customer standards & requirements ,can present quotation against the machine revision process or fulfill customer request against new designs.
Motor with brake and forced fan cooling.
For any special request or project, Please do not hesitate to contact with us.

BCBM-M01

Movable Chair

BCBM-M02

Oscillator

BCBM-M03

Oscillator

BCBM-M04

Steel Stair

Download Product Brochure

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

BCBM	Sym	Unit	BCBM-3 x 3	BCBM-4 x 4	BCBM-5 x 5	BCBM-6 x 6
Working range		m	3 x 3	4 x4	5 x 5	6 x 6
Max load (boom)		kg	200	200	150	150
Boom speed (welding) min/max		mm/min	200-1850	200-1850	200-1850	200-1850
Lifting speed min/max		mm/min	1220	1220	1220	1220
Column rotation			manual	manual	manual	manual
Column rotation motorized			option	option	option	option
Boom height Max (movable base)	H2+(D-C)	mm	4000	5000	6000	6920
Boom height Min (movable base)	H1+(D-C)	mm	850	850	980	920
Height (Moveable Type)	H3+(D-C)	mm	4970	6050	7050	8010
Boom height Max (stationary base)	H2	mm	3800	4800	5800	6800
Boom height Min (stationary base)	H1	mm	650	650	780	780
Height (Fixed Type)	H3	mm	4770	5850	6850	7850
Extension min/max	Bmax-Bmin	mm	1180-4180	1180-5180	1180-6180	1290-7290
Base size (width x length)	A	mm	2200-2200	2200x2200	2200x2200	2400x2400
Base speed (welding) min/max		mm/min	200-1770	200-1770	200-1770	200-1770
Track width (inside to inside)	E	mm	1800	1800	1800	1800
Rail type			A55	A55	A55	A55
Platform size (width x length)		mm	1230x1400	1230x1400	1230x1400	1230x1400
Total load on platform		kg	150	150	150	150
Weight (Moveable Type)		kg	2790	3060	4100	4900
Weight (Fixed Type)		kg	2380	2620	3780	4200
Total Motor Power		kW	1	1	1	1
