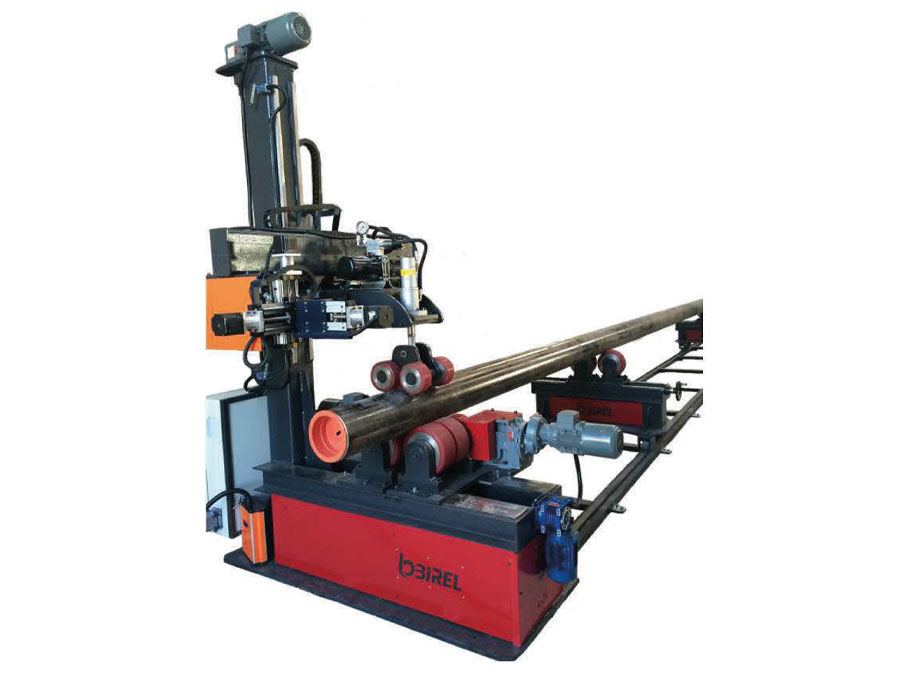

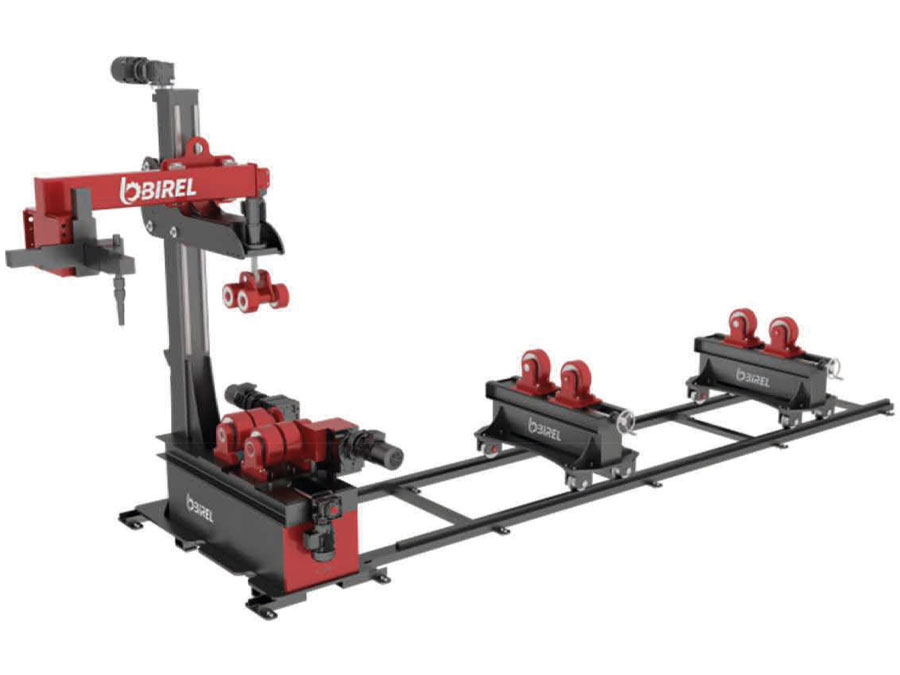

Elbow Welding Rotator – BD

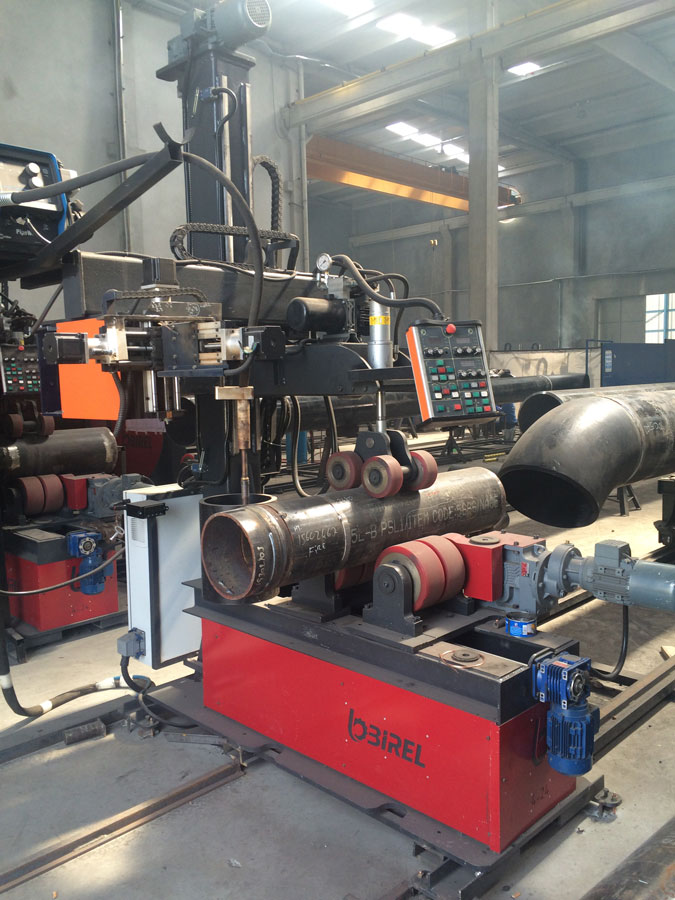

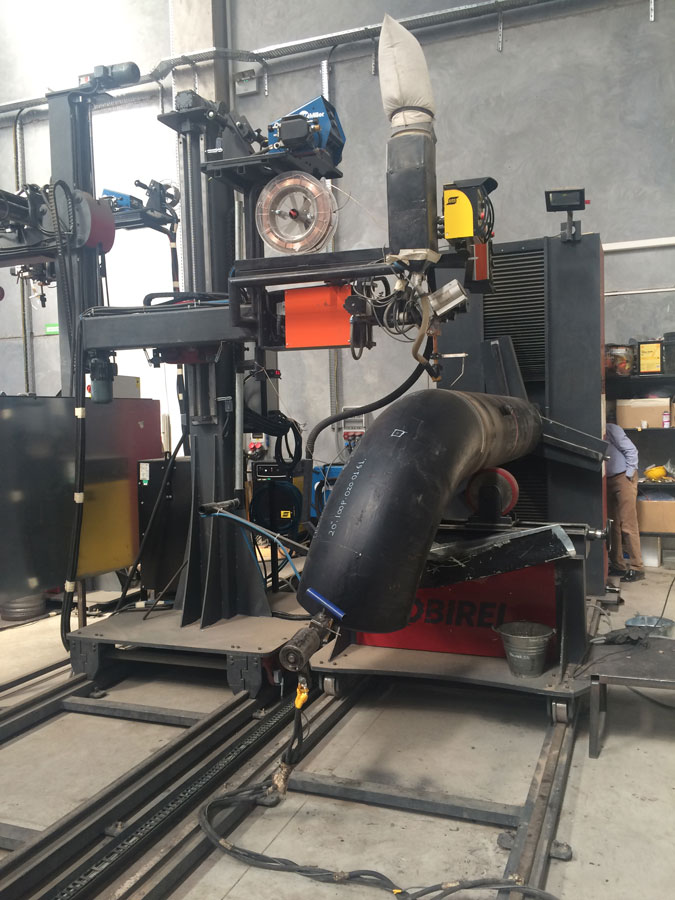

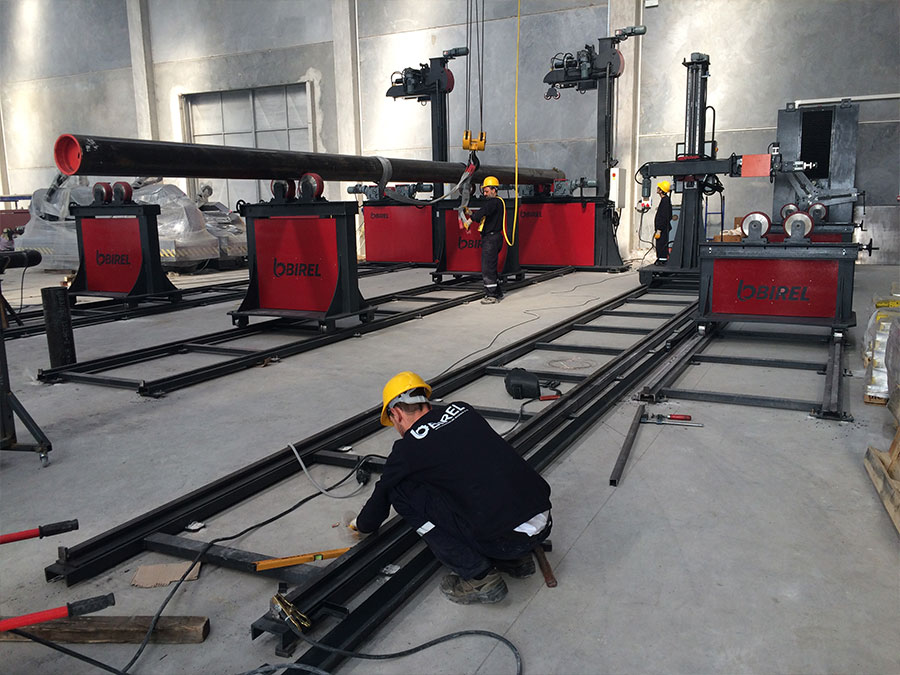

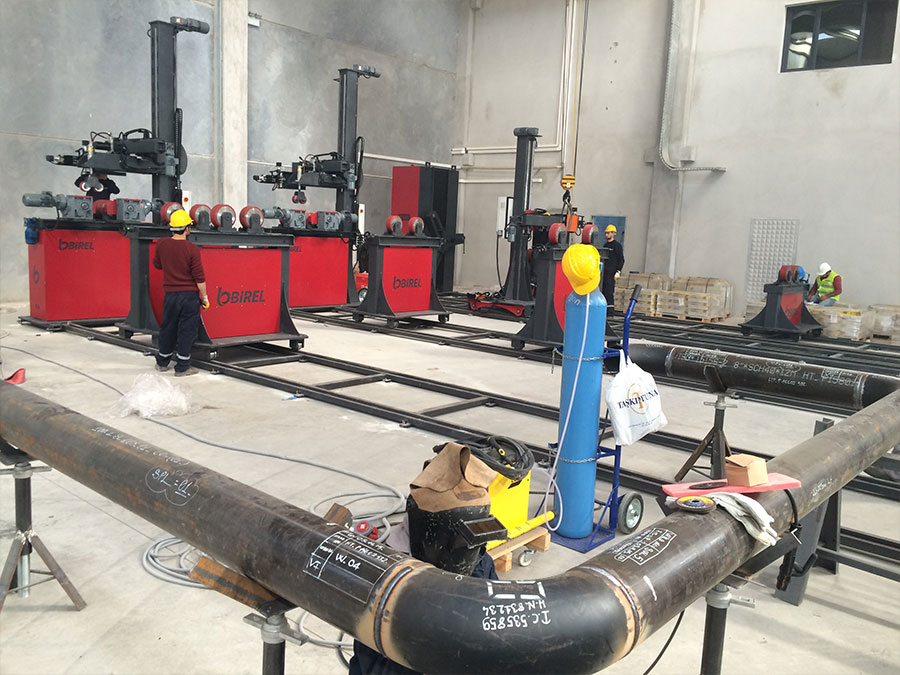

BD Elbow Welding Rotator Model is used for the purpose of rotation and welding with round profilesin manual or automatic welding, mainly in the field of pipe construction, prefabrication and assembly on site.

BD Elbow Welding Rotator Model is used for the purpose of rotation and welding with round profilesin manual or automatic welding, mainly in the field of pipe construction, prefabrication and assembly on site.
Due to rotation of pipe, No interruption is observed in circumferential welding of pipe.
BD ElbowWelding Rotator Model, as standard, Up and down movement for diameter adjustment is performed mechanically by Manual Wheel. Upon request, Optionally, A quick mounting-detaching equipments can be provided.

Capability of rotation.
Up & Down movements for Diameter adjustment are provided by means of manually operated mechanical wheel as standard.
Adjustable rotation speed & digital display on electrical cabinet.
5 mt. Command Cable.
5 mt.Power Cable.
Brake & Fan Cooled Motor.
Standard Machine Colors:
• Chassis RAL 7011(Grey)
• Sheet Covers:RAL 3020(Red )
Power Supply: 380V – (3 phase+Neutral +Earthing).
One (1) Year Warranty (wearing parts out of warranty).

Birel Machinery as standard provides BD model in capacities of 6000 – 8000 kg.
In special conditions, Out of these standard capacities, Birel Machinery, according to customer standards & requirements, has the opportunity of manufacturing possibility at different capacities.
Motor with brake and forced fan cooling.
Optionally,Welding Torch mounting equipment is provided.
For any special request or project, Please do not hesitate to contact with us.

DFPSE

Double Foot Pedal with Stick and Stop (3m)

OHC

Overhead Hangable Control

Master Panel

WRC

Wireless Remote Control

EN

Download Product Brochure

TR

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

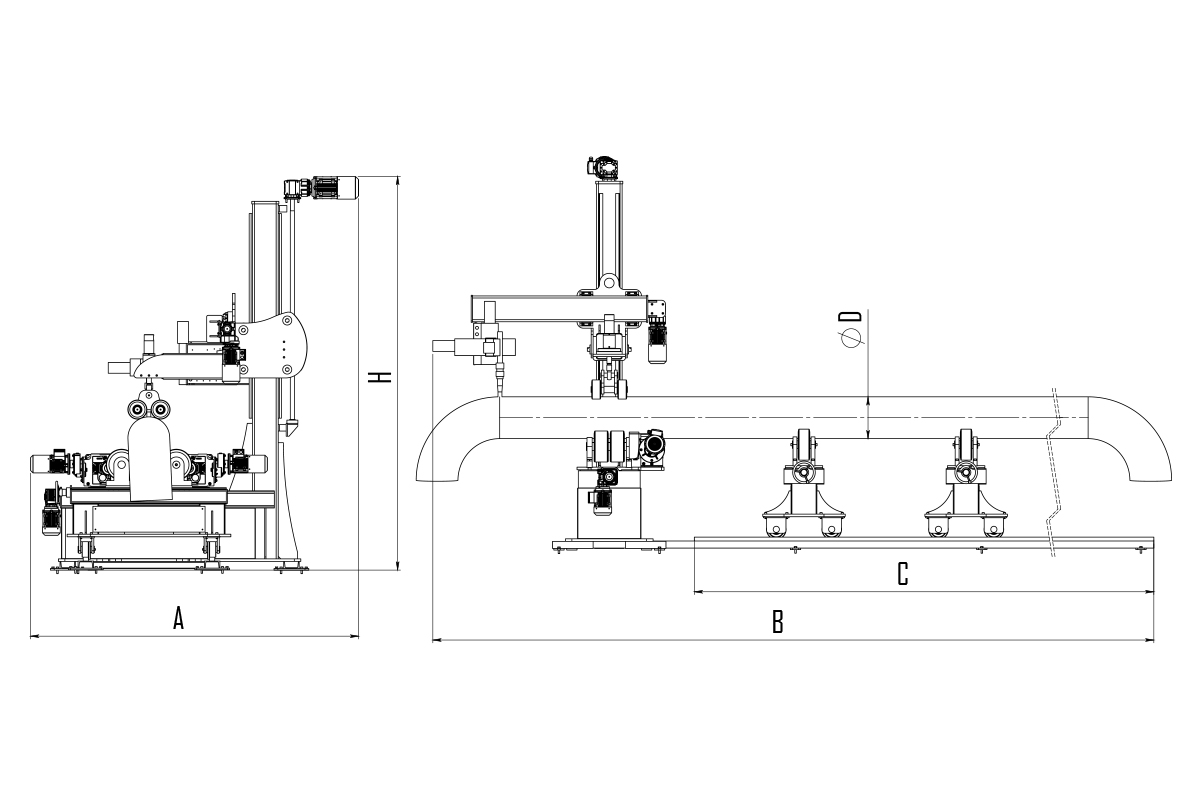

BD	Sym	Unit	BD(4-24)	BD(12-56)
Capacity		kg	6000	8000
Mountable Pipe Diameter Range	Dmin - Dmax	inch	4"-24"	12"-56"
Machine Length	A	mm	2600	3150
Rail Axis	C	mm	11000	11000
Total Length	B	mm/min	13000	13000
Height	H	mm	3050	4800
Welding Speed		mm / min	200-1250	200-1250
Weight		kg	3700	5250
