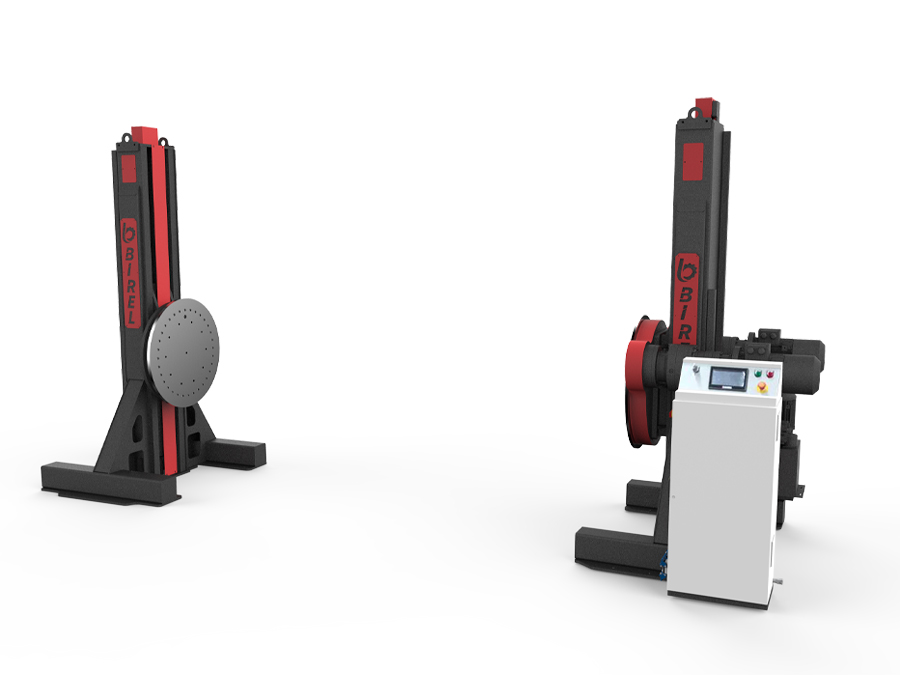

Headstock Tailstock Welding Positioner – BEM HS (2AX)

Ground stationary version hydraulic lift Model chassis Welding Positioner (2AX)

BEM-H(S) Ground Stationary Version Hydraulic Lift Model Intended Usage ;

Hydraulic Model is long life.
Suitable for dusty working environments.
Silent Operation.
Opportunity of Table Rotation Speed adjustment.

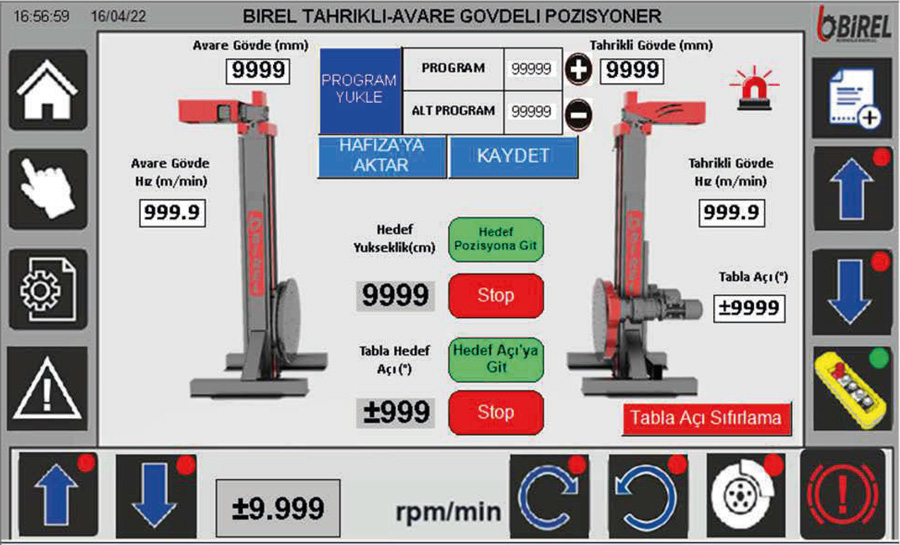

On HMI control unit, program (recipe) capacity and under each different Set Values (Height and Angle) defining opportunity available.

3-Jaw Manual Chuck

DFPSE

Double Foot Pedal with Stick and Stop (3m)

OHC

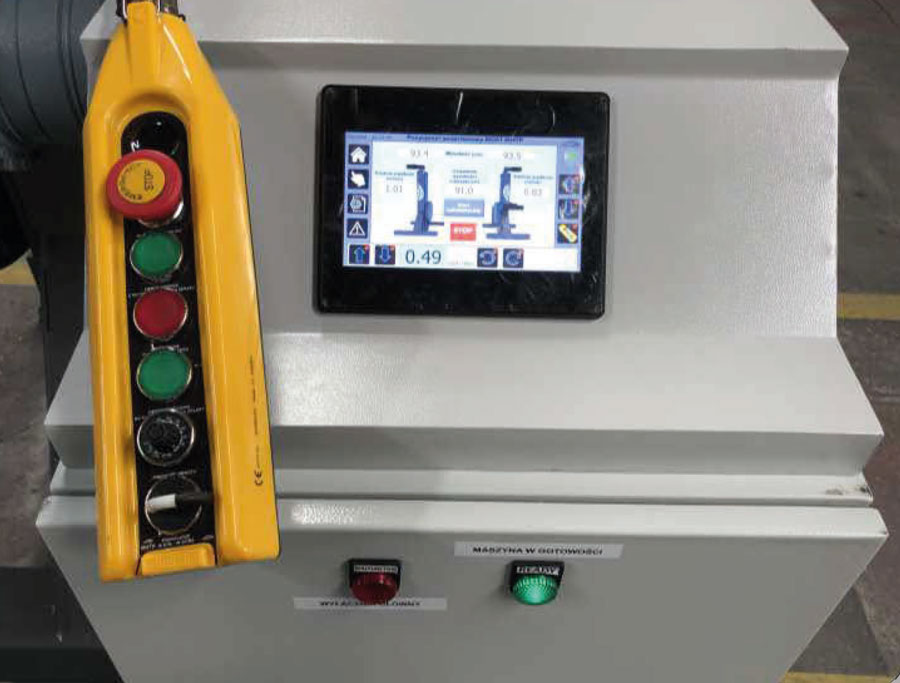

Overhead Hangable Control

Master Panel

WRC

Wireless Remote Control

EFFA

Easy Fixing Fixture Apparatus

Download Product Brochure

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

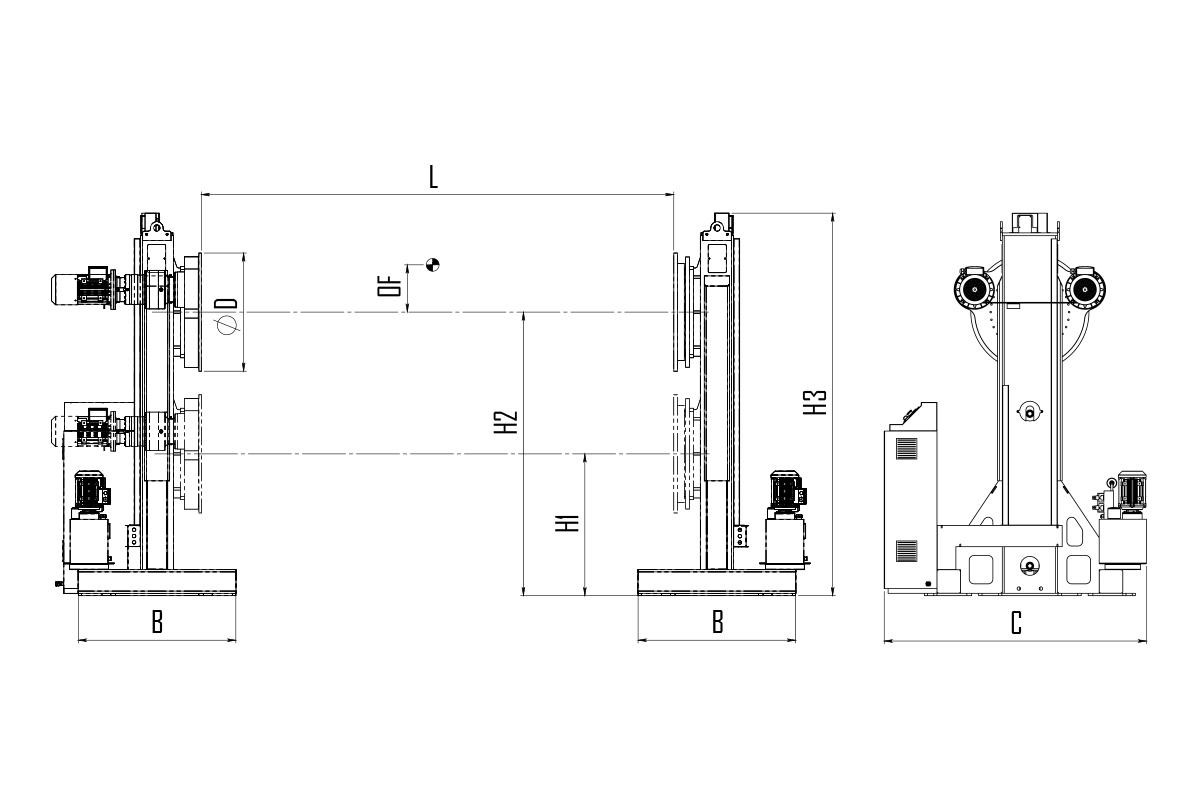

BEM HS	Sym	Unit	BEM-1,5 HS	BEM-3 HS	BEM-5 HS	BEM-6 HS	BEM-8 HS	BEM-10 HS	BEM-12 HS	BEM 15 HS
Capacity		kg	1500	3000	5000	6000	8000	10000	12000	15000
Rotation Speed		rpm	0,2 - 01	0,2 - 1,15	0,2 - 1	0,2 - 1,2	0,1-0,68	0,1-0,62	0,1-0,67	0,1 - 0,63
Up&Down Time		mm/min	2400	1500	930	930	770	770	770	770
Max. Rotational Torque		Nm	5000	10150	17800	20550	24000	30000	36000	42000
min-max lifting height	H1-H2	mm	550-1350	650-1550	900-1800	900-1800	900-1800	900-1800	1100-2000	1100-1200
Offset Distance	OF	mm	300	300	300	300	300	300	300	250
Table Plate Diameter	ØD	mm	575	650	750	750	750	850	1000	1000
Max. Workpiece Diameter		mm	2700	3100	2600	3600	3600	3600	4000	4000
Height	H3	mm	2150	2350	2430	2430	2430	2430	2600	2600
Length	B	mm	850	850	1000	1000	1000	1000	1000	1000
Width	C	mm	1455	1600	1670	1670	1670	1740	1790	2120
Space Distance	L	mm	6000	6000	6000	6000	6000	6000	6000	6000
Motor Power Of Table		kW	0,75 x 1	1,5 x 1	1,5 x 2	1,5 x 2	1,5 x 2	1,5 x 2	2,2 x 2	2,2 x 2
Motor Power of Hydraulic Unit		kW	1,1 x 2	1,1 x 2	1,1 x 2	1,5 x 2	2,2 x 2	2,2 x 2	2,2 x 2	2,2 x 2
Weight		kg	1470	1660	2100	2140	2190	2380	2560
