L Type Welding Positioner – BLP (3AX)

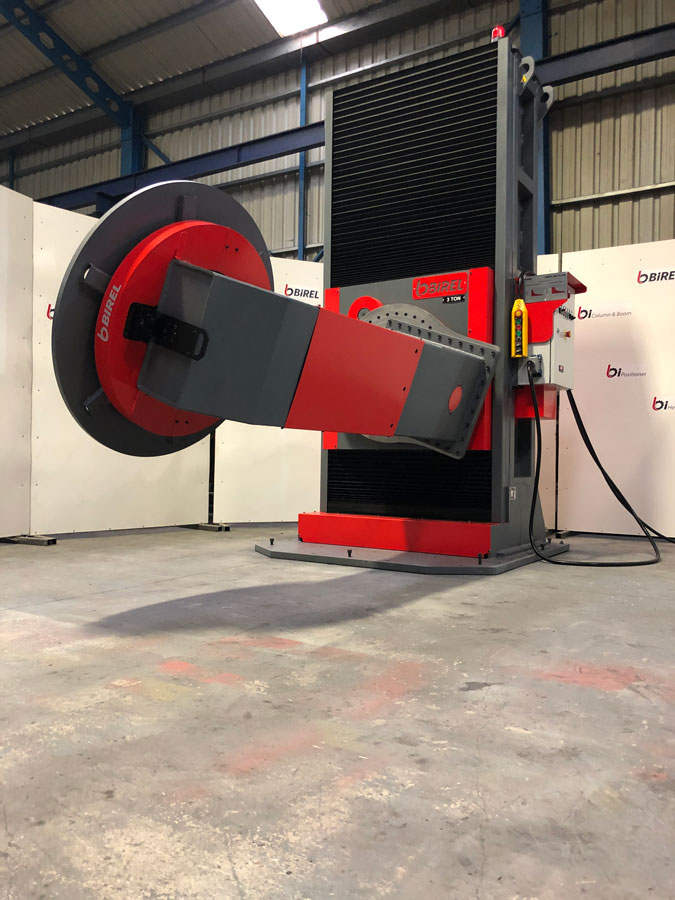

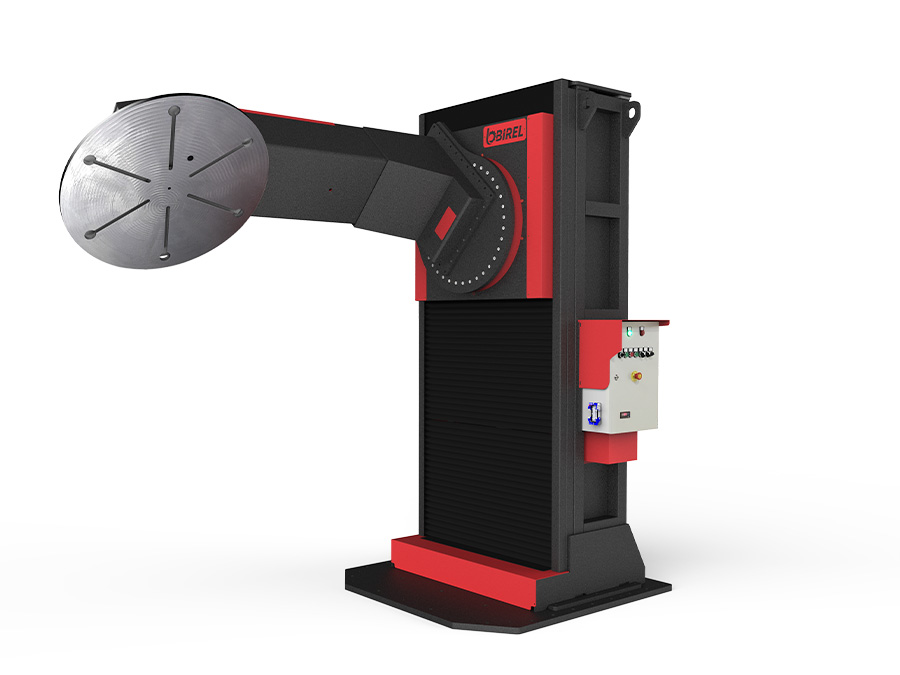

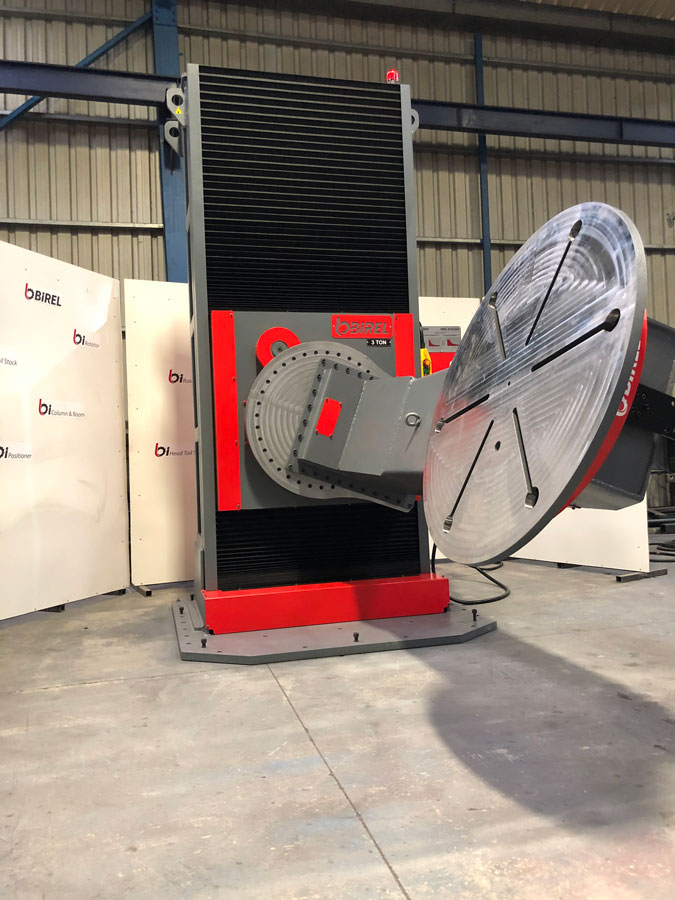

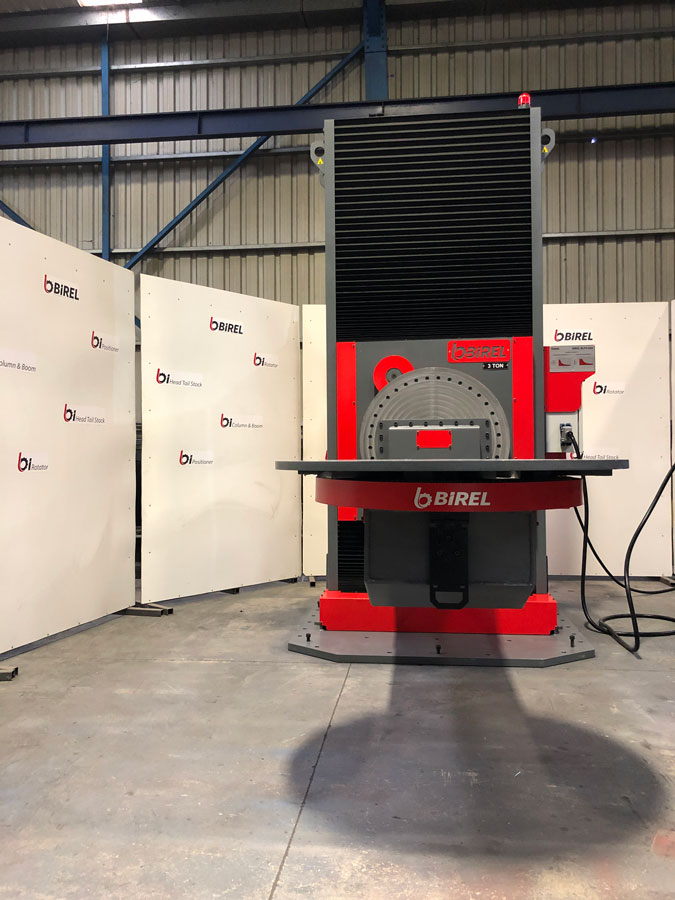

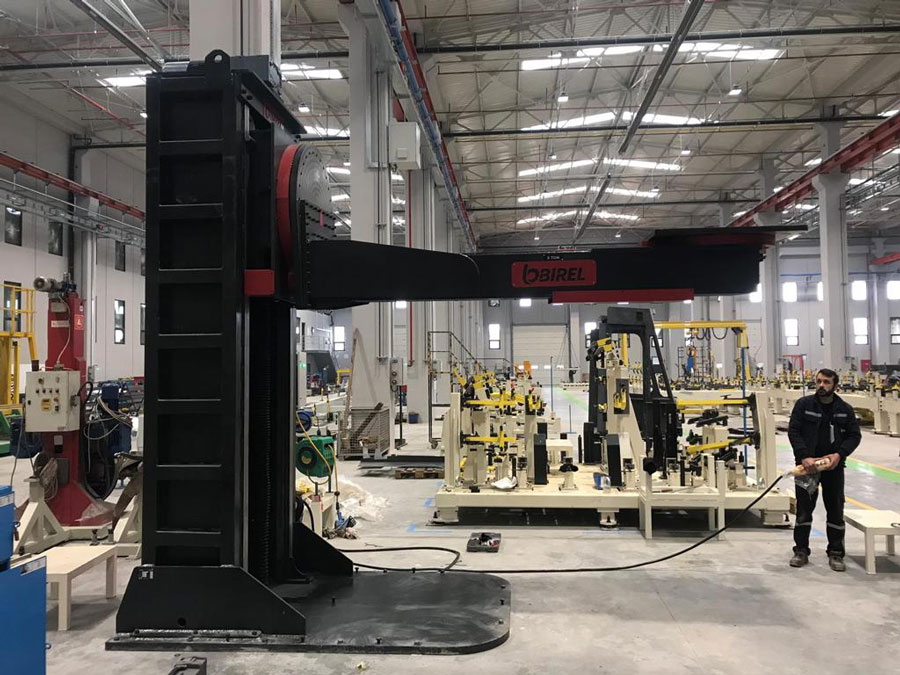

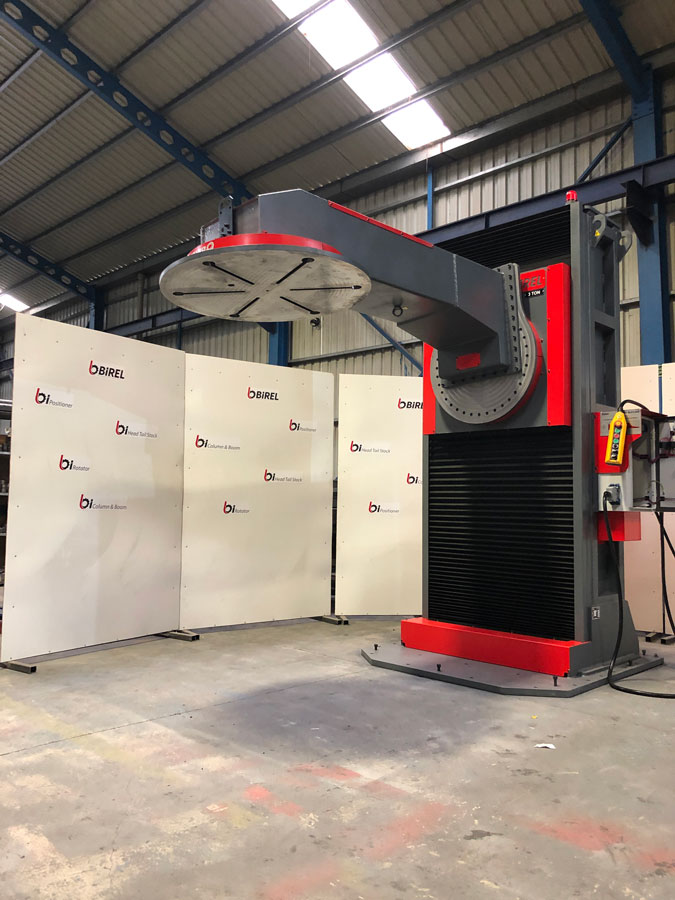

BLP-3AX model 3 axis Heavy Duty L-Shape Positioner, Regardless of any geometric shape within dimensions of the machine, In favour of being able to position and generating remarkable welding edges to all workpieces are qualified & ideal solutions. Ensures utmost capability of welding & likewise assembling at 360° degree of any required position.

BLP-3AX model 3 axis Heavy Duty L-Shape Positioner, Regardless of any geometric shape within dimensions of the machine, In favour of being able to position and generating remarkable welding edges to all workpieces are qualified & ideal solutions. Ensures utmost capability of welding & likewise assembling at 360° degree of any required position.

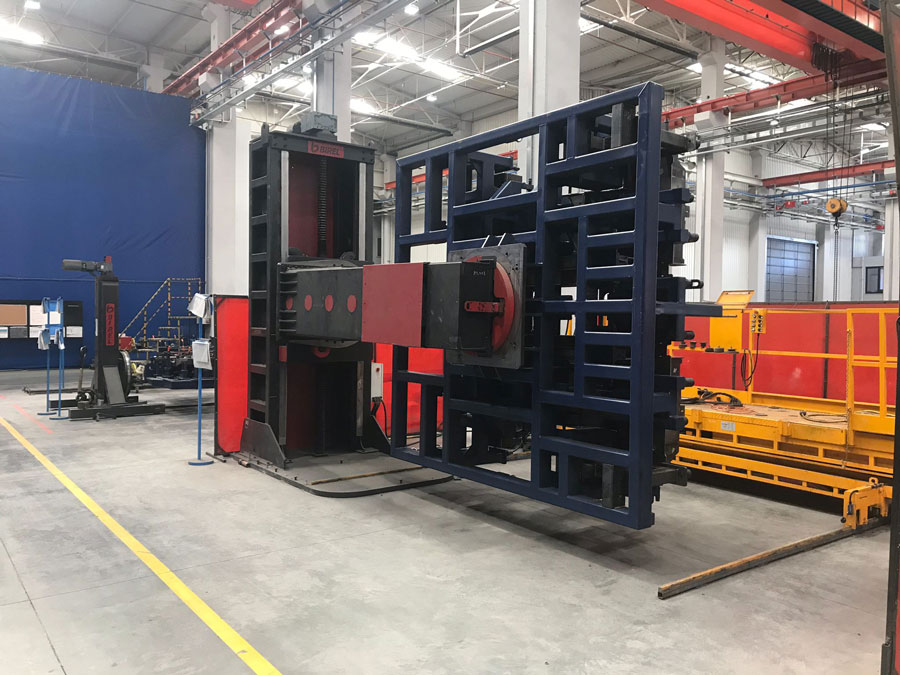

Designed in best suitable configuration to perform safe positioning of the workpieces having asymmetry & higher probability of overturn.

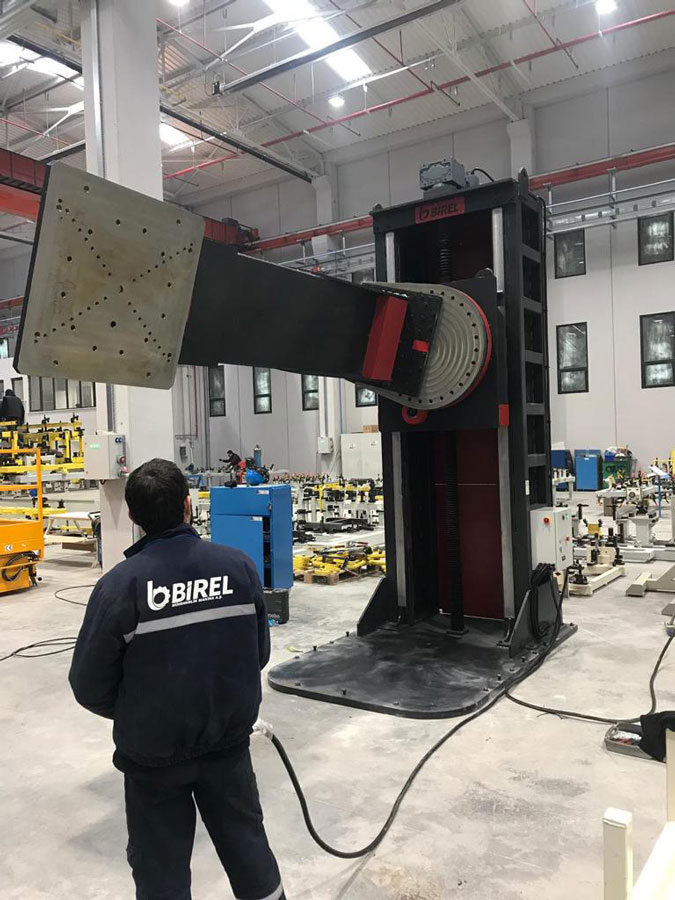

Avoids of crane operations that are part handling, rotating of parts, etc. during production, Provides the opportunity of using operator’s working power to use more effectively by minimizing time loss and it increases the effiency of work.
BLP-3AX model 3 axis Heavy Duty L-Tye positioner with robust construction & easy controlling ability, Provides the opportunity of comfortable working to operator & improves the quality of welding.
The operators with BLP-3AX “L” type positioner, At center axis of worktable Workpiece can be precisely rotated over the command control at Clockwise(CW)or Counterclockwise(CCW) at specified speeds.

Capability of 360 degree worktable rotation.
Round Worktable with Slots.
Vertical Hydraulic Lifting of workpiece is presented as standard.
Adjustable worktable rotation speed.

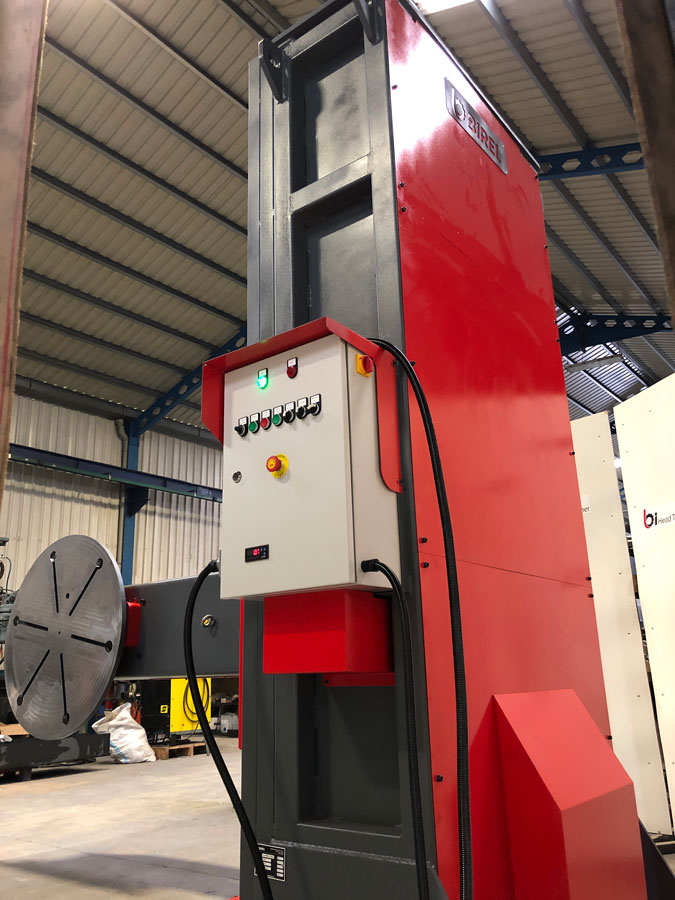

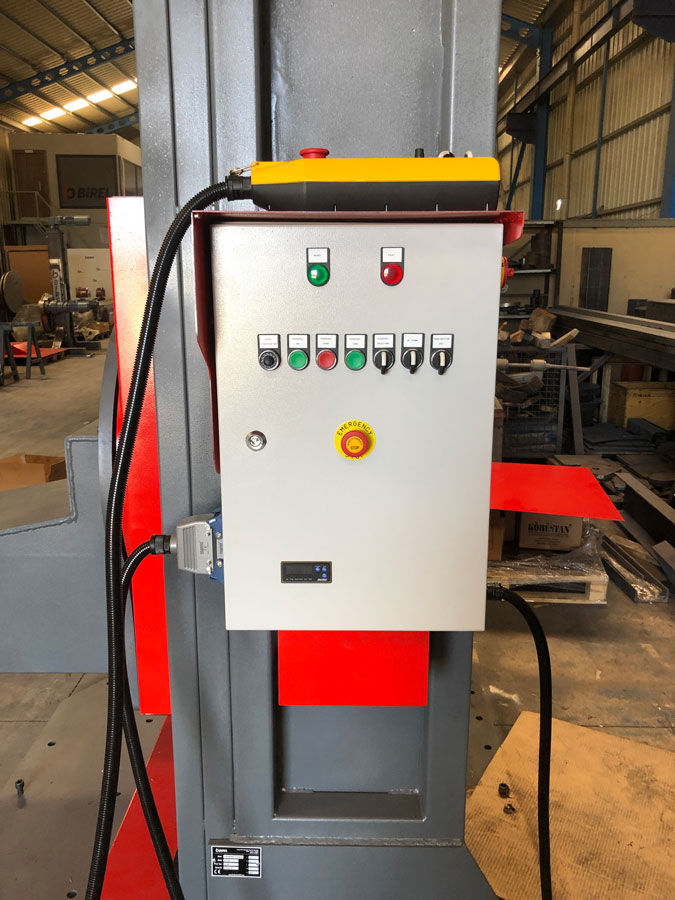

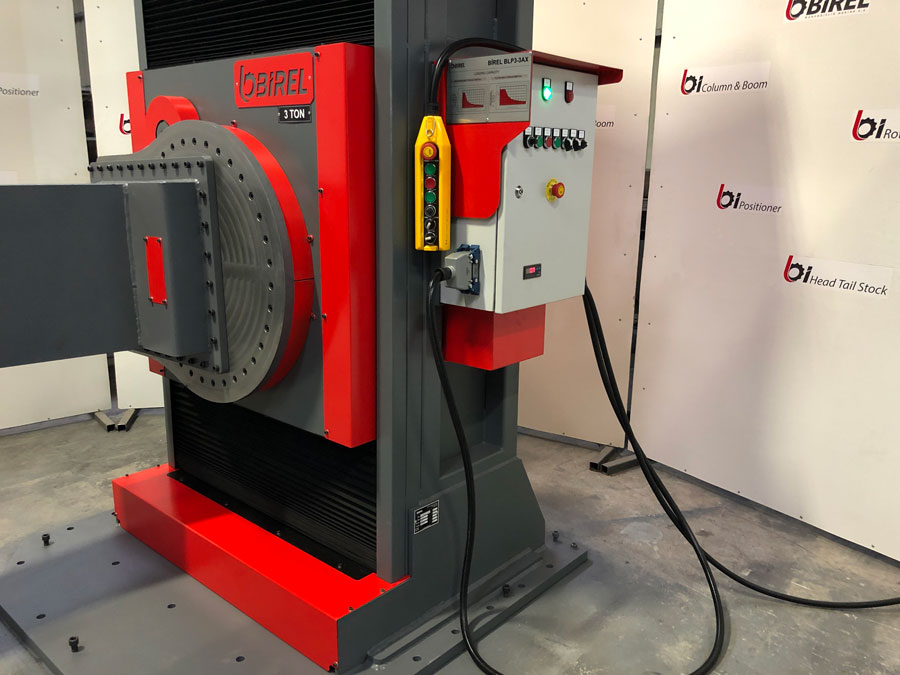

Rotational Speed Dijital display on Electrical Cabinet.
5 mt. Command Cable.
5 mt.Power Cable.
Brake & Fan Cooled Motor.
Welding Arc Group.
Warning Light.
Standard Machine Colors:
• Chassis RAL 7011(Grey)
• Sheet Covers:RAL 3020(Red )
Power Supply: 380V – (3 phase+Neutral +Earthing)
One (1) Year Warranty.

Birel Machinery as standard provides BLP-3AX models in capacities of 1,5 • 3 • 5 • 7,5 • 10 ton.
Allow quick connection of workpieces by using “ T ” slots on worktable(Optional)
Welding Arc Group
Motor with brake and forced fan cooling.
For any special request or project, Please do not hesitate to contact with us.
In special conditions, Out of these standard capacities, Birel Machinery, according to customer standards & requirements, has the opportunity of manufacturing possibility at different capacities.

T-SE

Round Worktable T-Side Entry Grooved Thick Table Plate

3-Jaw Manual Chuck

OC-T

Octagonal Welding Table

BGR

3-Jaw Manual Pipe Gripper

DFPSE

Double Foot Pedal with Stick and Stop (3m)

OHC

Overhead Hangable Control

WRC

Wireless Remote Control

SQ-T

Square Table

PLC

PLC Control System with HMI Display

EN

Download Product Brochure

TR

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

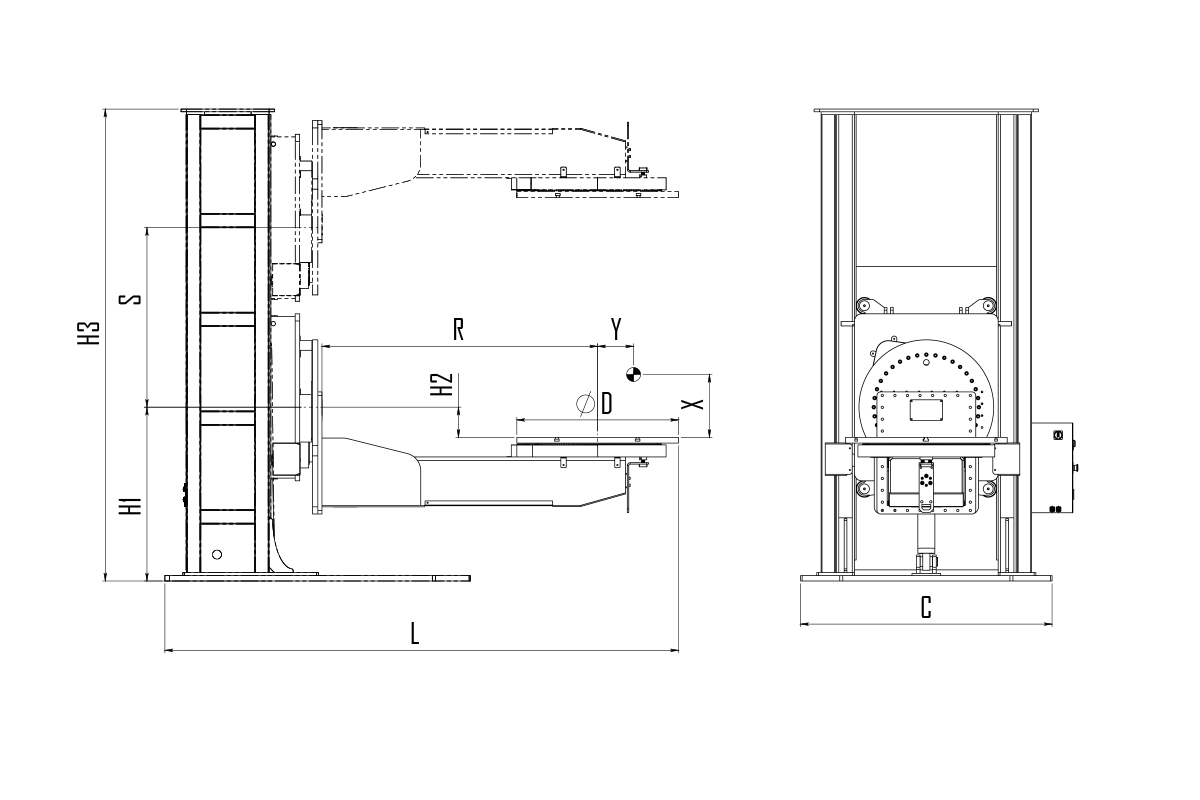

BLP-3AX	Sym	Unit	BLP 1,5 - 3AX	BLP 3 - 3AX	BLP 5 - 3AX	BLP 7,5 - 3AX	BLP 10 - 3AX
Loading Capacity		kg	1500	3000	5000	7500	10000
Lifting Stroke	S	mm	1000	1100	1100	1200	1300
Working Radius	R	mm	1300	1600	1700	1850	2000
Offset Distance	X-Y	mm	300-150	300-150	450-150	450-150	450-150
Table Diameter	ØD	mm	850	1000	1150	1250	1350
Table Torque		Nm	2260	4550	7500	12050	15000
Table Speed		rpm	0,2-1,4	0,2-1	0,15-0,78	0,05-0,50	0,1-0,5
Tilt Torque		Nm	3340	6900	14750	19300	24700
Tilt Speed		rpm	0,80	0,55	0.55	0,45	0,45
Lifting Speed		m/min	0.96	0,92	0.67	0,65	0,50
Max. Welding Current	A	mm	700	700	1000	1000	1000
Rotating Center Height	H1	mm	850	1050	1130	1200	1300
Plate Rotating Center Difference	H2	mm	100	100	230	260	280
Total Height	H3	mm	2720	2900	2960	3250	3480
Total Length	L	mm	2750	3300	3350	3780	4200
Total Width	C	mm	1380	1500	1740	1850	1920
Motor Power of Table		kW	0,55	0,75	1,1	1,1	1,5
Motor Power of Tilting		kW	0,55	0,75	1,5	1,5	1,5 x 2
Motor Power of Lifting		kW	1,1	1,5	1.5	3	3
Weight		kg	-	-	-	-	-
