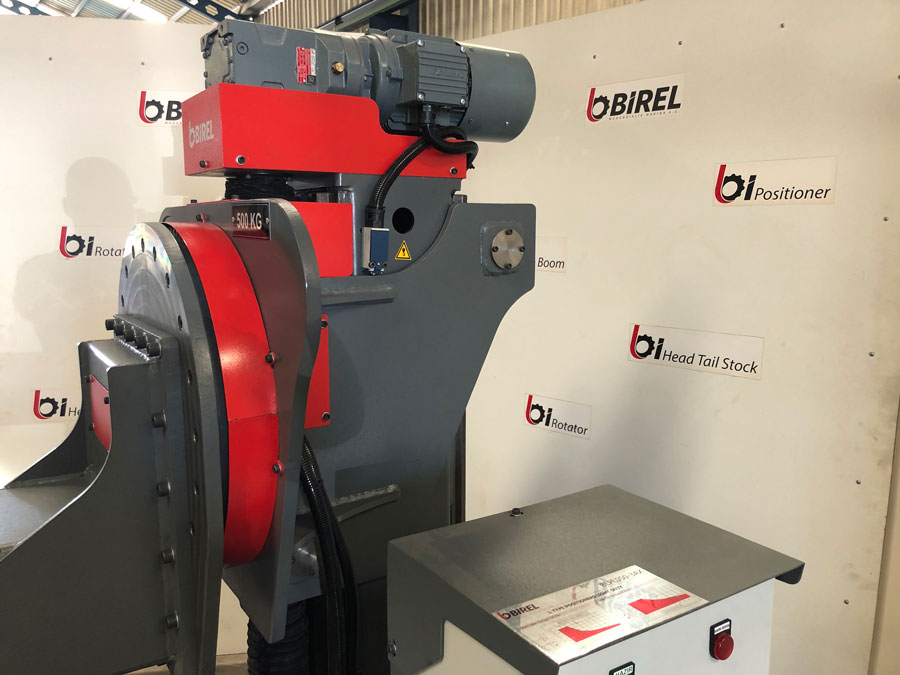

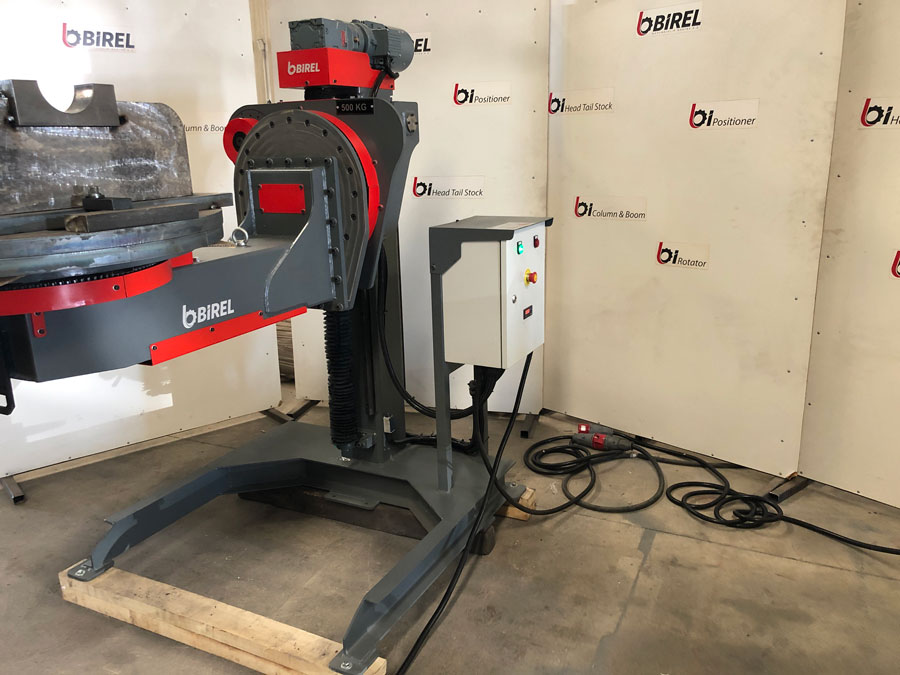

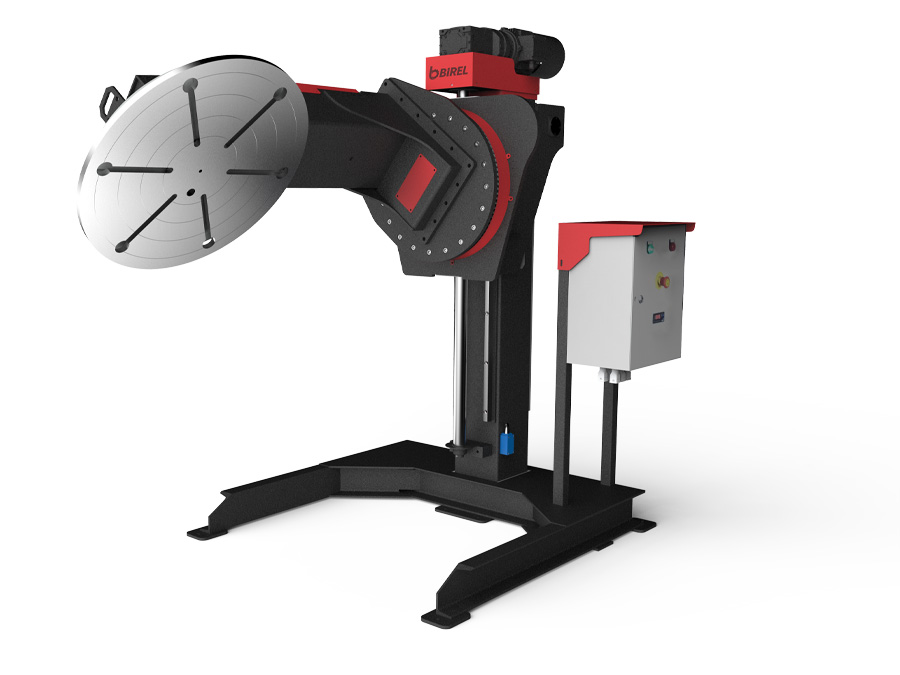

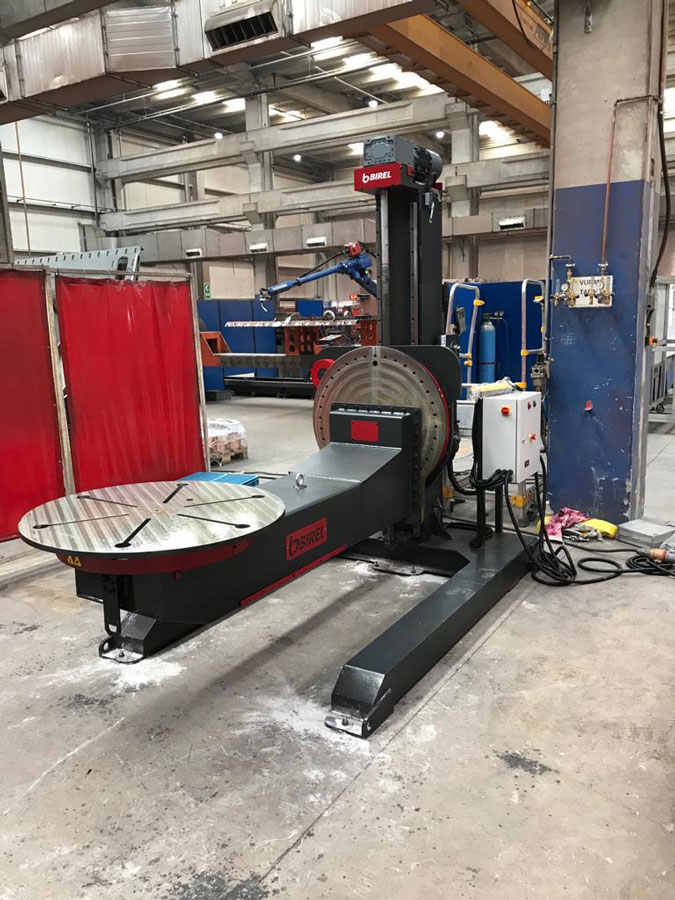

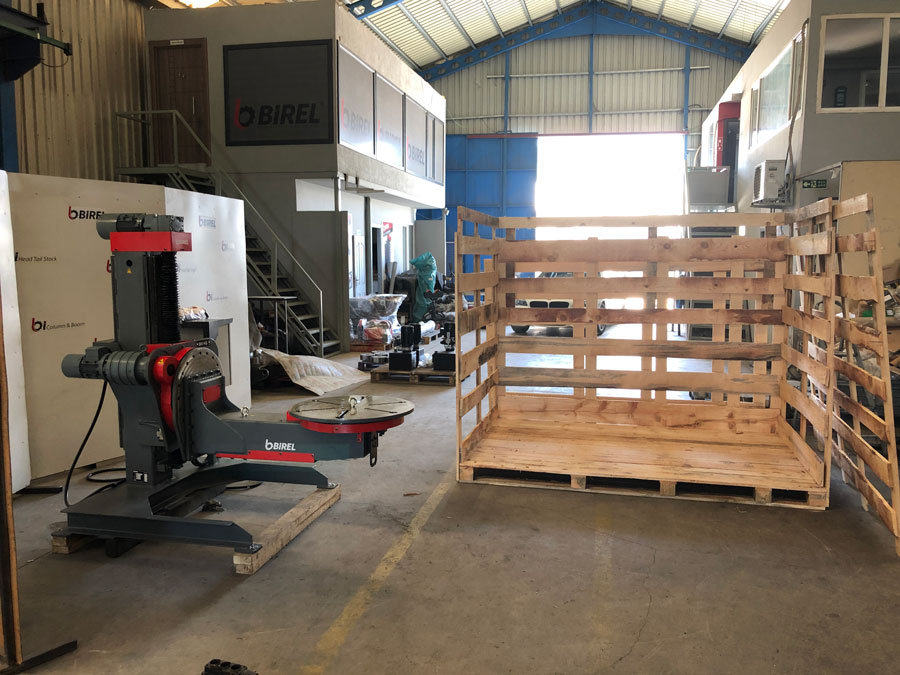

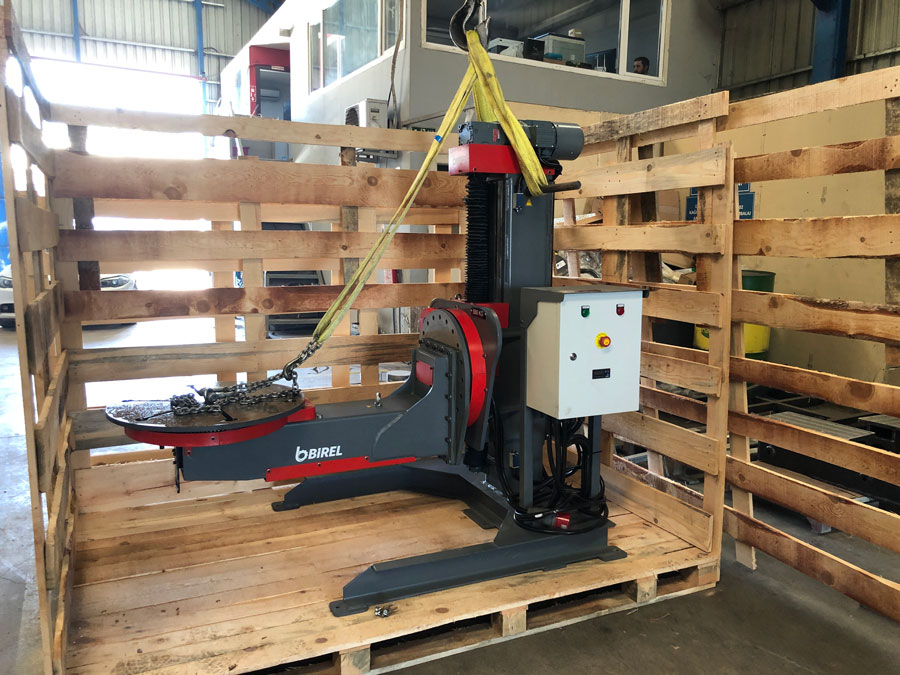

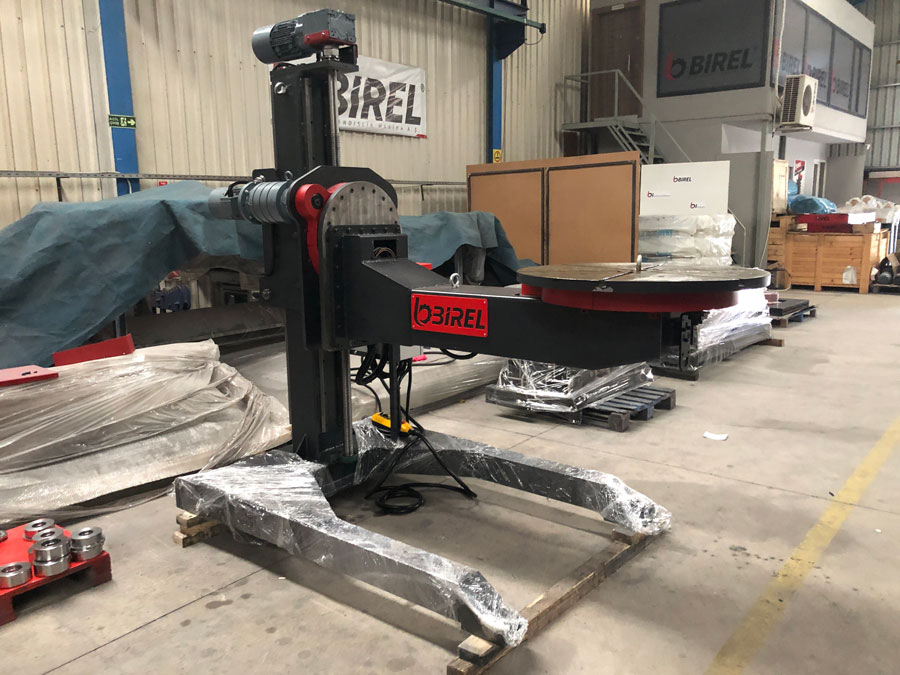

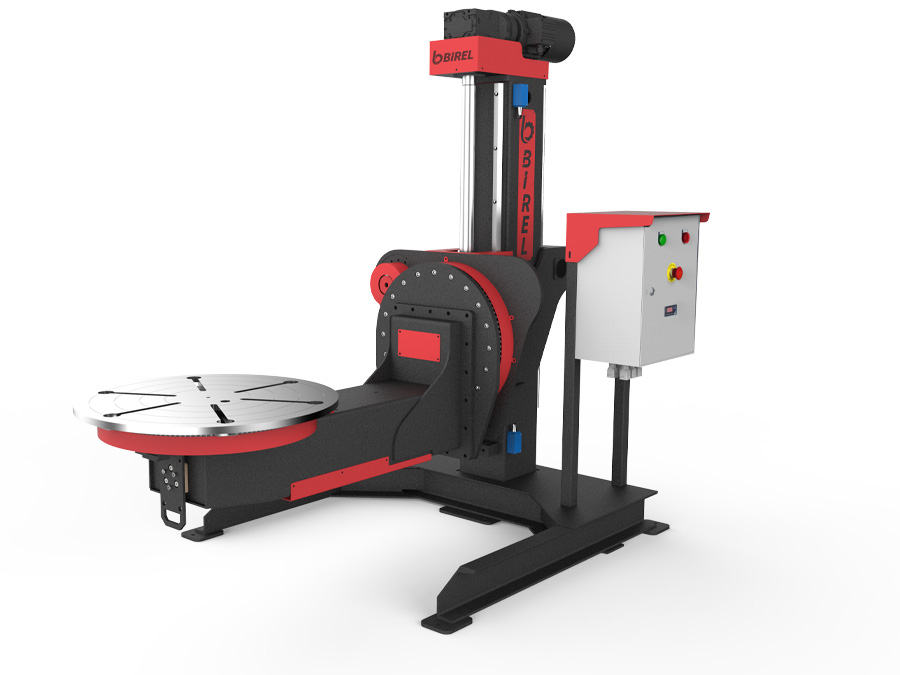

L Type Welding Positioner – BLPL (3AX)

BLPL-3AX model 3 axis Head Tail Stock Positioner, Regardless of any geometric shape within dimensions of the machine, In favour of being able to position and generating remarkable welding edges to all workpieces are qualified& ideal solutions. Ensures utmost capability of welding & likewise assembling at 360° degree of any required position.

BLPL-3AX model 3 axis Head Tail Stock Positioner, Regardless of any geometric shape within dimensions of the machine, In favour of being able to position and generating remarkable welding edges to all workpieces are qualified& ideal solutions. Ensures utmost capability of welding & likewise assembling at 360° degree of any required position.
Designed in best suitable configuration to perform safe positioning of the workpieces having asymmetry & higher probability of overturn.
Avoids of crane operations that are part handling, rotating of parts, etc. during production, Provides the opportunity of using operator’s working power to use more effectively by minimizing time loss and it increases the effiency of work.
BLPL-3AX model positioner with robust construction & easy controlling ability, Provides the opportunity of comfortable working to operator & improves the quality of welding.
The operators with BLPL-3AX “L” type positioner, At center axis of worktable Workpiece can be precisely rotated over the command control at Clockwise (CW) or Counterclockwise(CCW) at specified speeds.

Capability of 360 degree worktable rotation.
Round Worktable with Slots.
Lifting of workpiece vertically by means of Threaded Shaft is presented as standard.
Adjustable worktable rotation speed & Dijital display on Electrical Cabinet.
5 mt. Command Cable.
5 mt.Power Cable.
Brake & Fan Cooled Motor.
Welding Arc Group.
Standard Machine Colors:
• Chassis RAL 7011(Grey)
• Sheet Covers:RAL 3020(Red )
Power Supply: 380V – (3 phase+Neutral +Earthing).
One (1) Year Warranty (Wearing Parts are outside of Warranty).

Birel Machinery as standard provides BLPL-3AX models in capacities of 0,75 • 1,5 • 3 ton.
In special conditions, Out of these standard capacities, Birel Machinery, according to customer standards & requirements, has the opportunity of manufacturing possibility at different capacities.
Motor with brake and forced fan cooling.
Welding Arc Group.
Allowquick connectionofworkpieces byusing “ T ” slots on worktable(Optional).
For any special request or project, Please do not hesitate to contact with us.

T-SE

Round Worktable T-Side Entry Grooved Thick Table Plate

3-Jaw Manual Chuck

OC-T

Octagonal Welding Table

BGR

3-Jaw Manual Pipe Gripper

DFPSE

Double Foot Pedal with Stick and Stop (3m)

OHC

Overhead Hangable Control

WRC

Wireless Remote Control

PLC

PLC Control System with HMI Display

EN

Download Product Brochure

TR

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

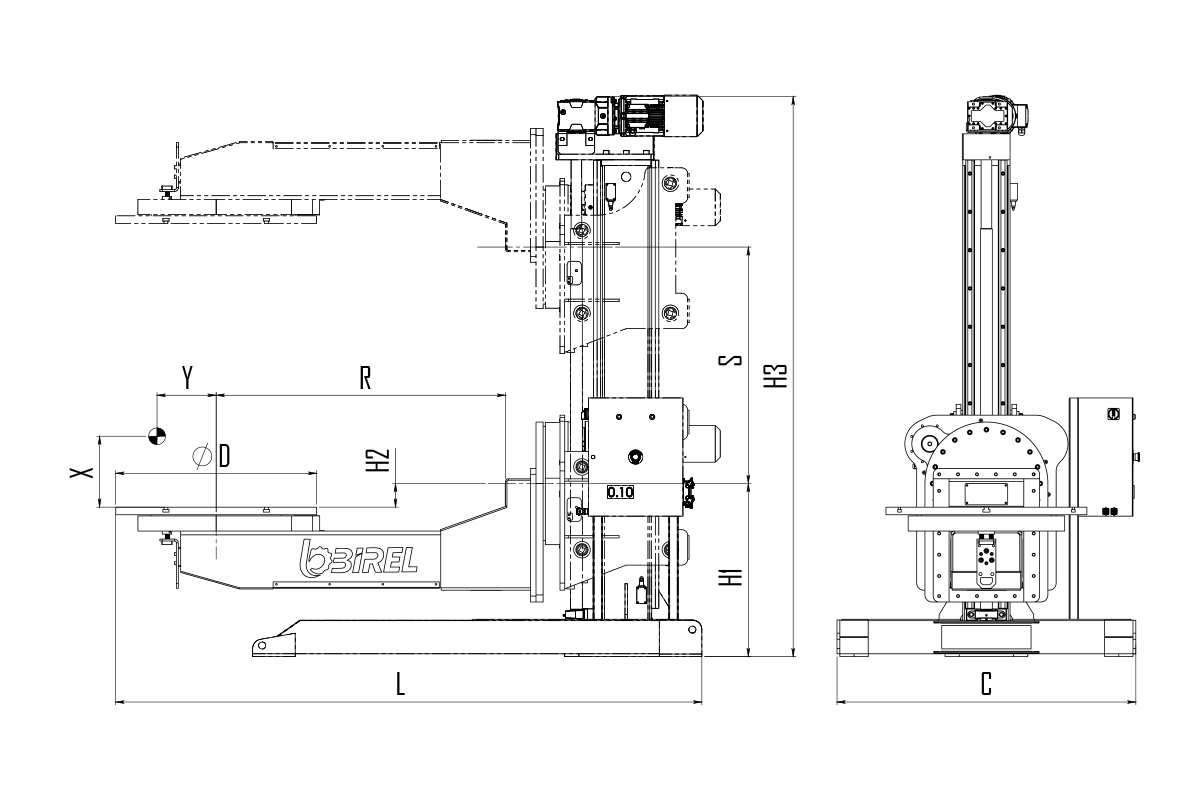

BLPL-3AX	Sym	Unit	BLPL 050 - 3AX	BLPL 075 - 3AX	BLPL 1,5 - 3AX	BLPL 3 - 3AX
Loading Capacity		kg	500	750	1500	3000
Lifting Stroke	S	mm	550	650	1000	1150
Working Radius	R	mm	1000	1000	1200	1600
Offset Distance	X-Y	mm	450-150	300-150	300-150	300-150
Table Diameter	ØD	mm	700	700	850	1000
Table Torque		Nm	750	1130	2260	4550
Table Speed		rpm	0,15-1,5	0,2-1,5	0,2-1,4	0,2 - 1
Tilt Torque		Nm	2100	2750	3340	6900
Tilt Speed		rpm	1	0.70	0.70	0.55
Lifting Speed		m/min	0.60	0.60	0.50	0.50
Max. Welding Current	A	mm	700	700	700	700
Rotating Center Height	H1	mm	770	680	730	720
Plate Rotating Center Difference	H2	mm	50	144	100	100
Total Height	H3	mm	1900	1910	2380	2630
Total Length	L	mm	2170	2200	2480	3160
Total Width	C	mm	1170	1300	1265	1500
Motor Power of Table		kW	0,37	0,37	0.55	0.75
Motor Power of Tilting		kW	0,37	0,37	0.55	0.75
Motor Power of Lifting		kW	0,75	1.1	1.5	3
Weight		kg	730	1050	1390	2230
