Pipe Rotator For Welding – BPRA Mini

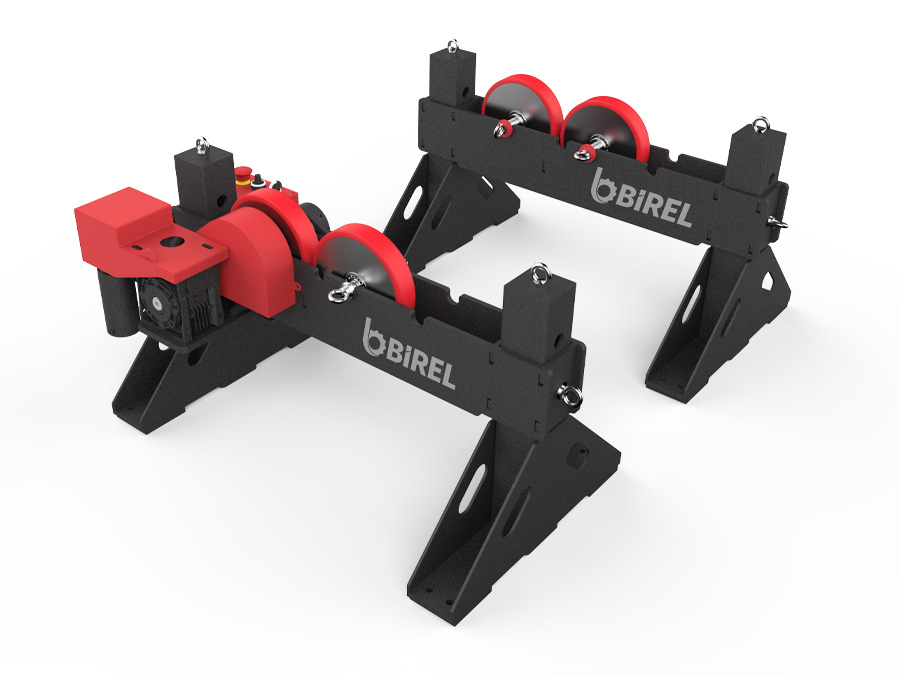

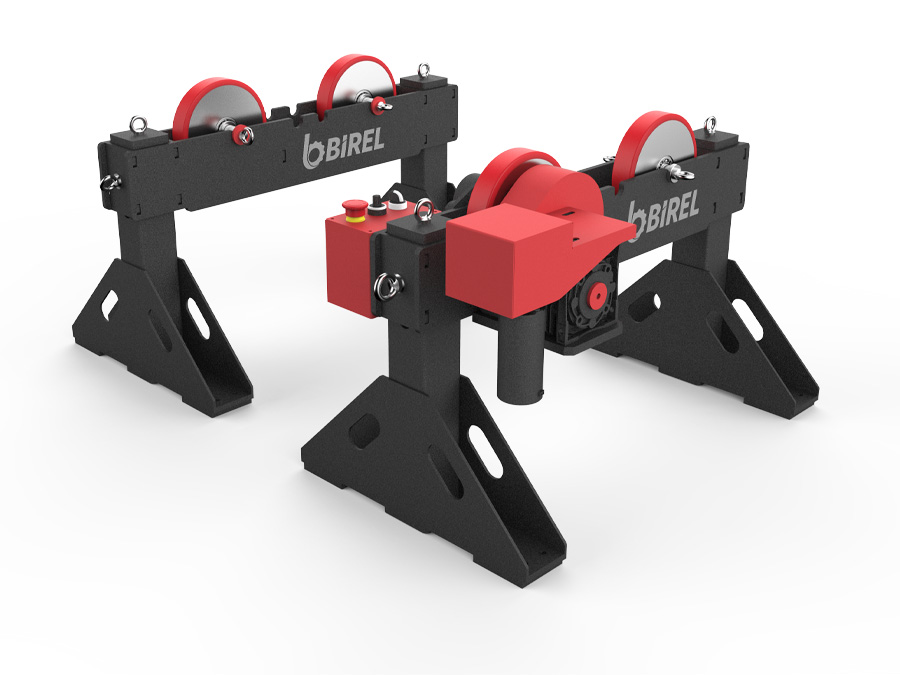

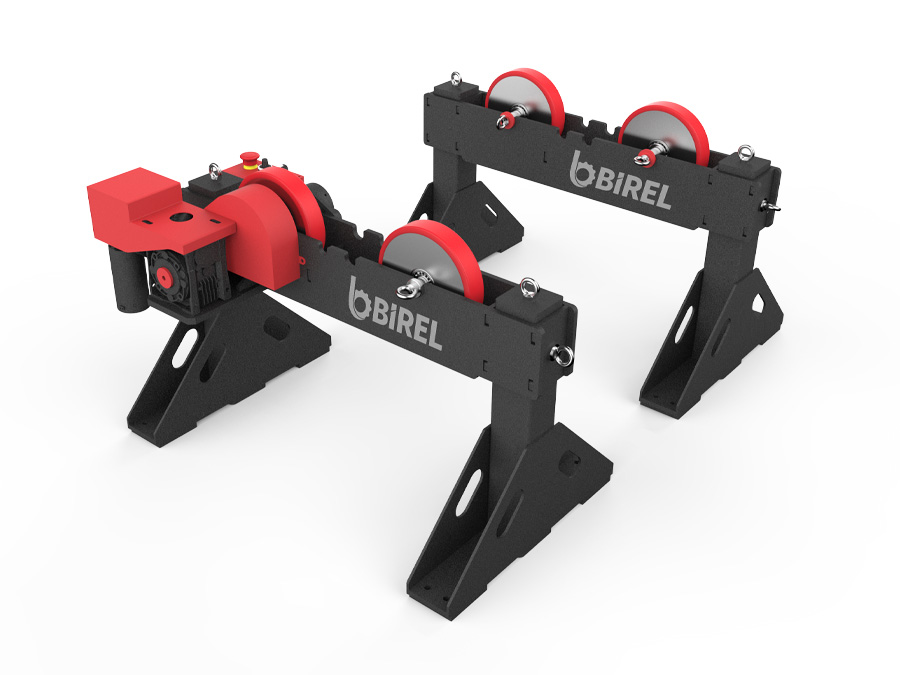

BPRA Mini model Pipe Rotator with Leg provides economical and practical circular welding solution to cylindrical parts having variable diameter.

BPRA Mini model Pipe Rotator with Leg provides economical and practical circular welding solution to cylindrical parts having variable diameter.
BPRA Mini model Pipe Rotator with Leg are used for rotating to perform circular welding of cylindrical parts, Such as Tanks, Pressure vessels, Tower Tubes, Boilers,Depots, Reactors, Depots, Fuel Barrels, WindPower,Petrochemical, PipeLines, Shipbuilding sector, etc.
BPRA Mini model Pipe Rotator with Leg requires pre-adjusment of diameters to contact with the workpiece.Adjustment is manually made by placing idler rollers on the slot present on the casing and then fastened.
Robust steel welded construction.
The cylindrical part remains central irrespective of diameter and frequent adjustment of the welding head becomes unnecessary.
Operators with BPRA Mini model Pipe Rotator with Leg by means of precise command control can easily rotate workpieces clockwise(CW) or counterclockwise(CCW) at accurate controlled speeds.
The rotators have an important place in steel construction workshops because they reduce the use of a crane, as well as increase the speed and the efficiency of automatic or manual welding processes.

In special conditions, Out of these standard capacities, Birel Machinery, according to customer standards & requirements, has the opportunity of manufacturing possibility at different capacities.
One(1)set of BPRA model Pipe Rotator with Leg consists of two units, one(1) driven unit and one for idler units. According to specific applications, the number of driven and idler units can be increased.
Optionally, Application of movement over rails with manual Buggy system by means of rollers to both units.
For operation performans, Availability of three(3) level manual adjustable height is available as standard.

DFPSE

Double Foot Pedal with Stick and Stop (3m)

OHC

Overhead Hangable Control

Master Panel

WRC

Wireless Remote Control

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

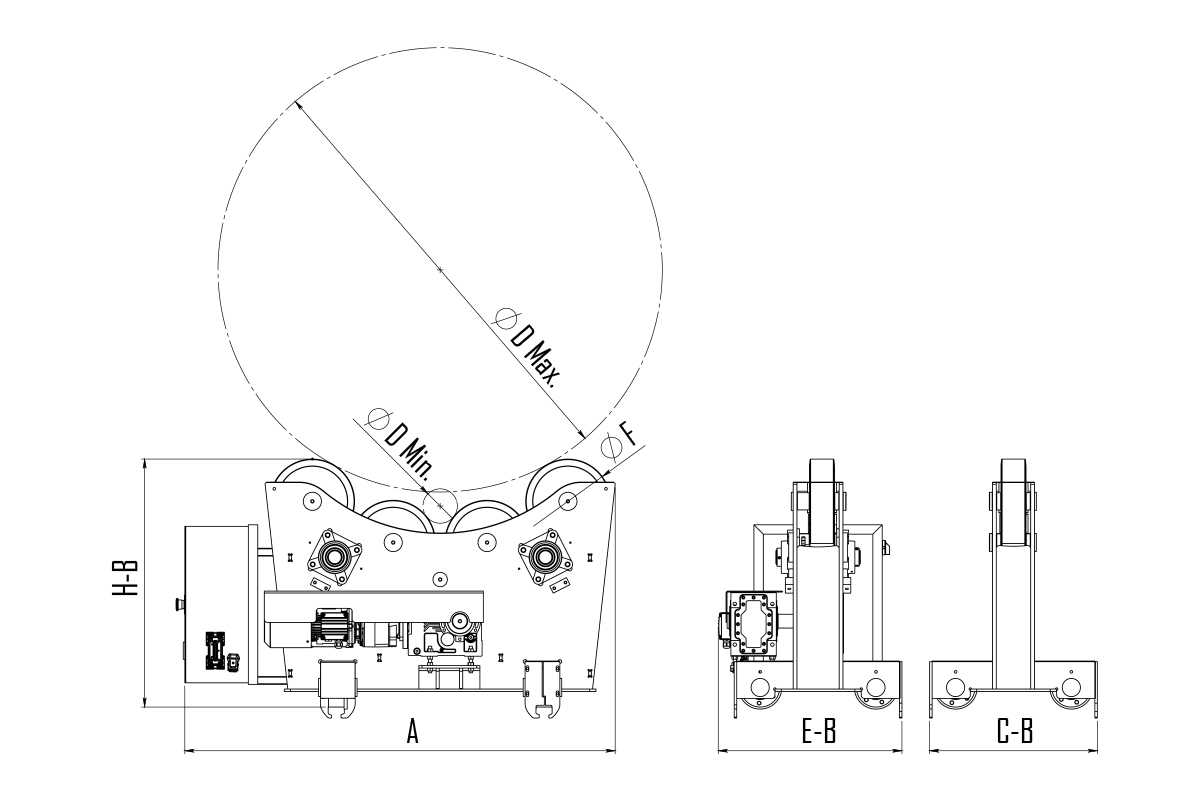

BPRA	Sym	Unit	Mini-BPRA 1,2
Capacity		kg	1200
Max. Load (Drive Unit)		kg/unit	600
Max. Load (Idler Unit)		kg/unit	600
No. of Driwen		WD	1WD
Rotation Speed		mm/min	60-910
Diameter Range	Ødmin ØDmax	mm	60-800
Wheel Diameter	ØF	mm	200
Wheel Material			PU
Length	A	mm	930
Width	B	mm	500
Height	H	mm	555
Rotator Frame Height 1st Level (max.)	M	mm	400
Rotator Frame Height 2nd Level	L	mm	340
Motor Power		kW	0,1
