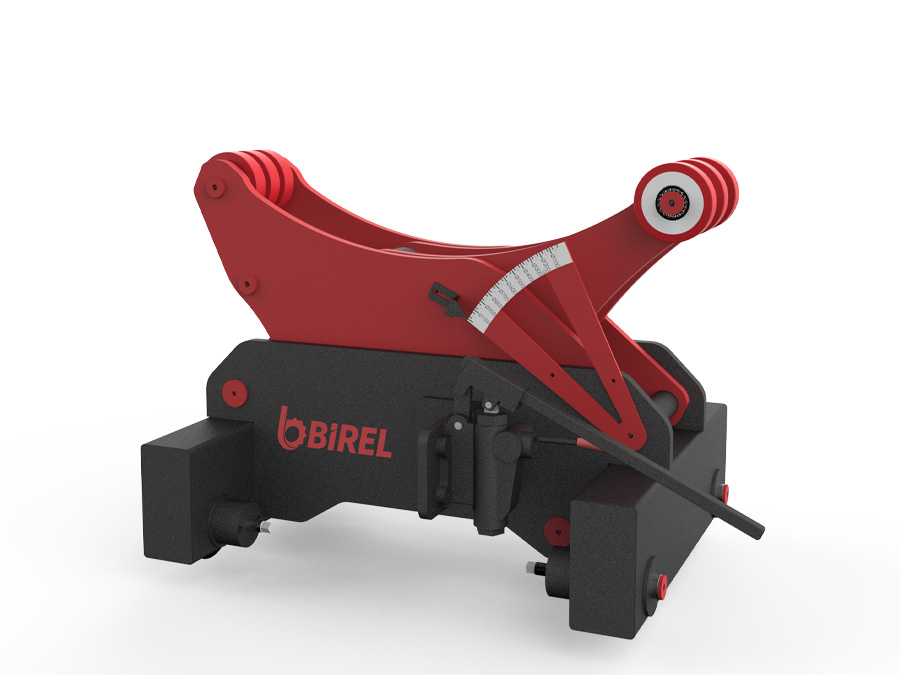

Pipe Welding Rotator – BHML

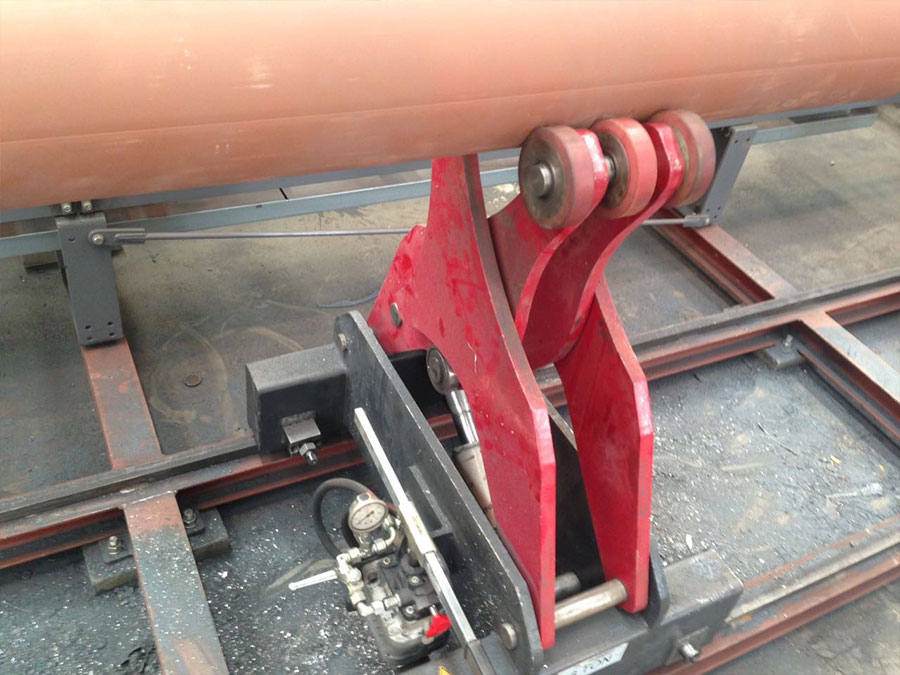

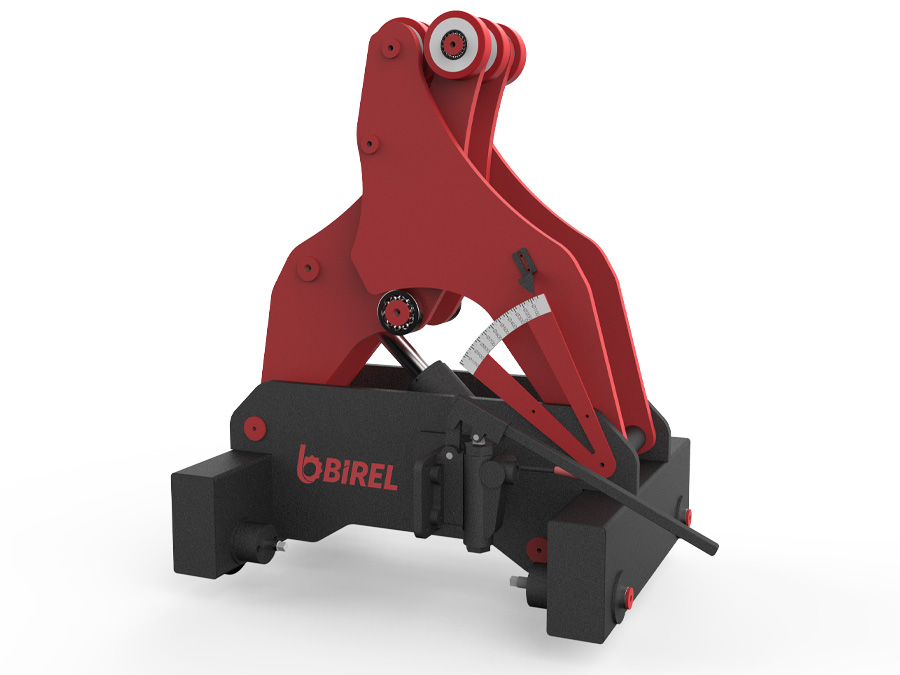

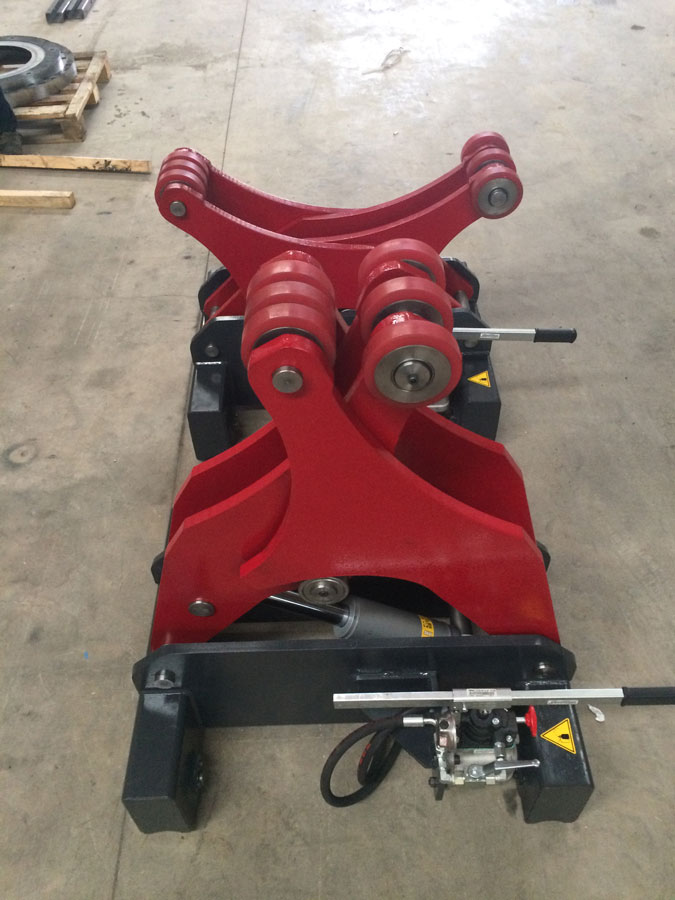

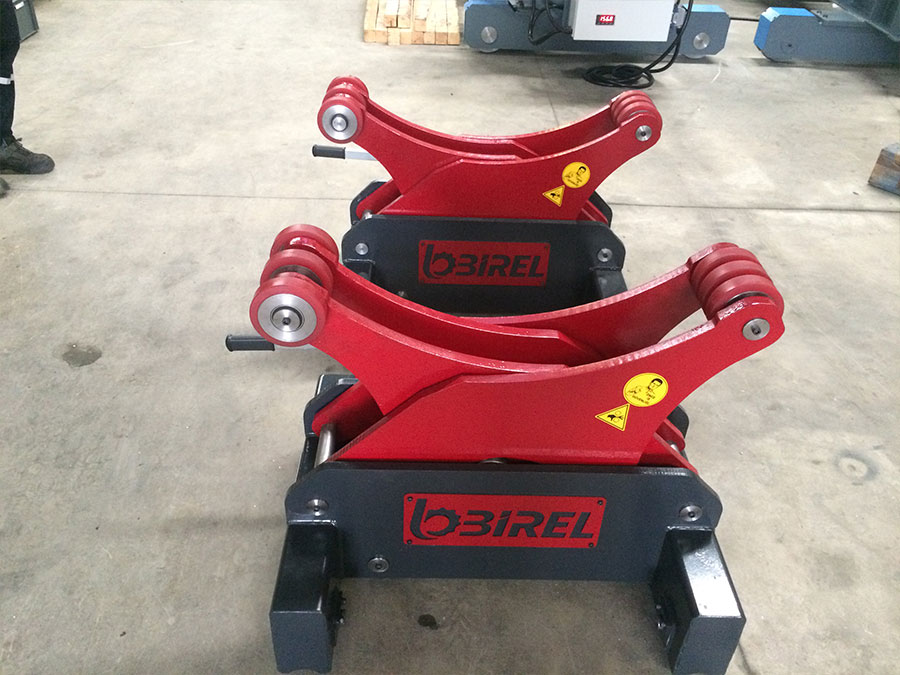

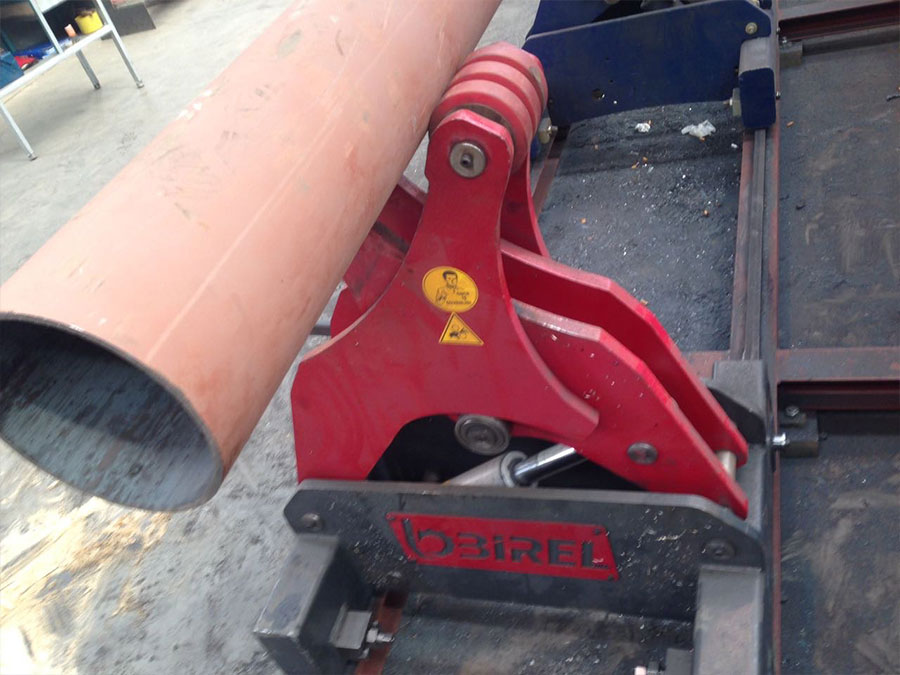

BHML Pipe Welding Rotator is designed as a suitable solution to qualified and proper circumferential welding of cylindrical parts according to diameter settings at suitable certain capacities.

BHML Pipe Welding Rotator is designed as a suitable solution to qualified and proper circumferential welding of cylindrical parts according to diameter settings at suitable certain capacities.
BHML Adjustable diameter Hydraulic Manual Lift minimizes the usage of Crane.
By easier usage provides saving of time.

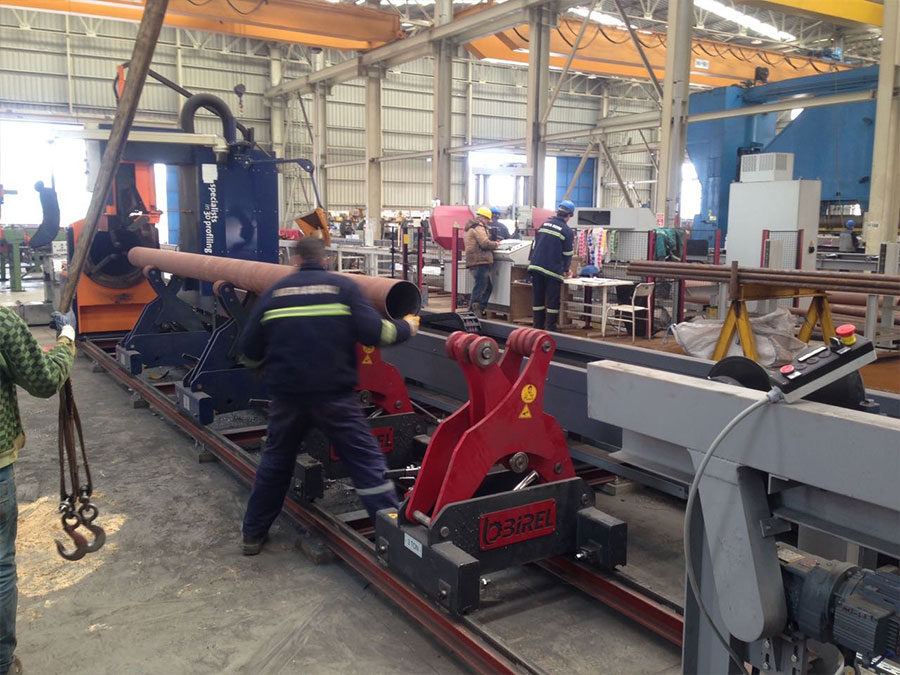

In Pipe welding production , it has an irreplaceable design in centering between Head and Tailstock distances it has an irreplaceable designty
Although BHML is constituted of single idler unit, If easy movement over a rail arrangement by means of a manual buggy system is requested, By increasing the number of BHML, we can easily provide positioning to more longer parts.
BHML is produced as standard 3000kg. According to special diameter & load range, we present special customer design production.

One «1» idler unit.
Manual Locking System
Mechanical Diameter Scale Indicator

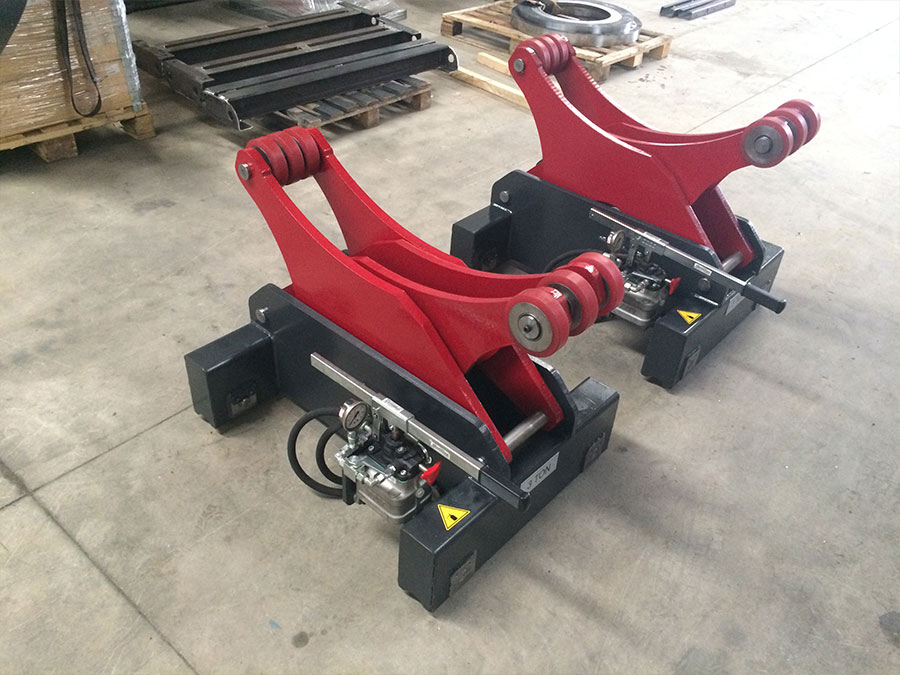

Hydraulic Height Adjustment by Handle.
Polyurethane Coated Rollers
Standard Machine Colors:
• Chassis RAL 7011(Grey)
• Sheet Covers:RAL 3020(Red )
One (1) Year Warranty (wearing parts out of warranty)

EN

Download Product Brochure

TR

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

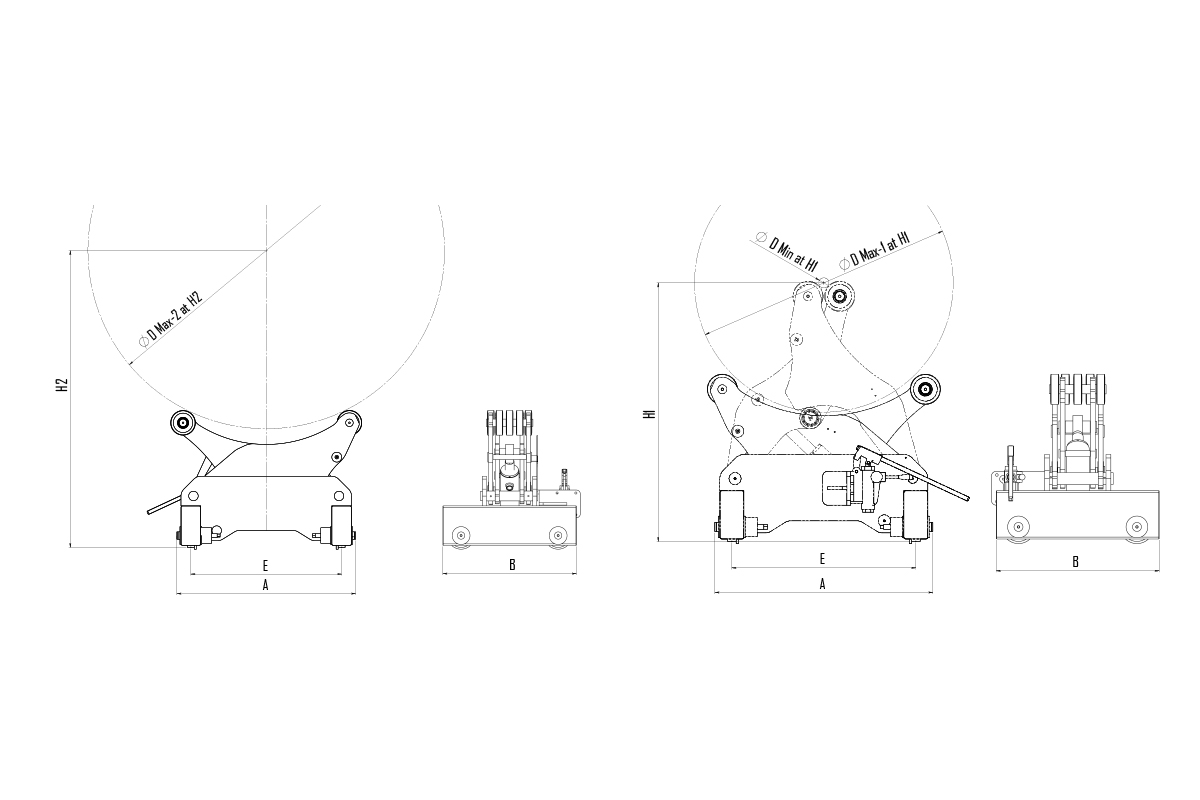

BHML	Sym	Unit	BHML-3
Capacity		kg	5000
Min.-Max.Rolling . – H1 Height	Ødmin at H1-Ødmax-1 at H1	sec	9
Max.Rolling . – H2 Height	ØD Max- at H2	sec	30
Height	H1-H2	mm	800
Rail Axis	E	mm	1415
Width	A	mm	1000
Length	B	mm	1200 x 300
Weight		mm	3265
