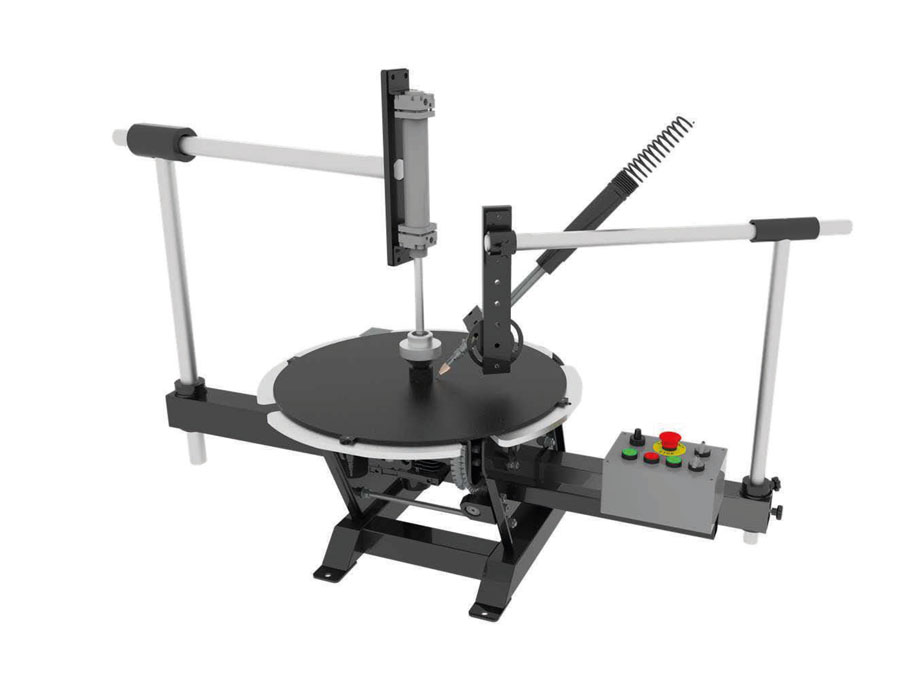

Welding Positioner – Mini BCP SA

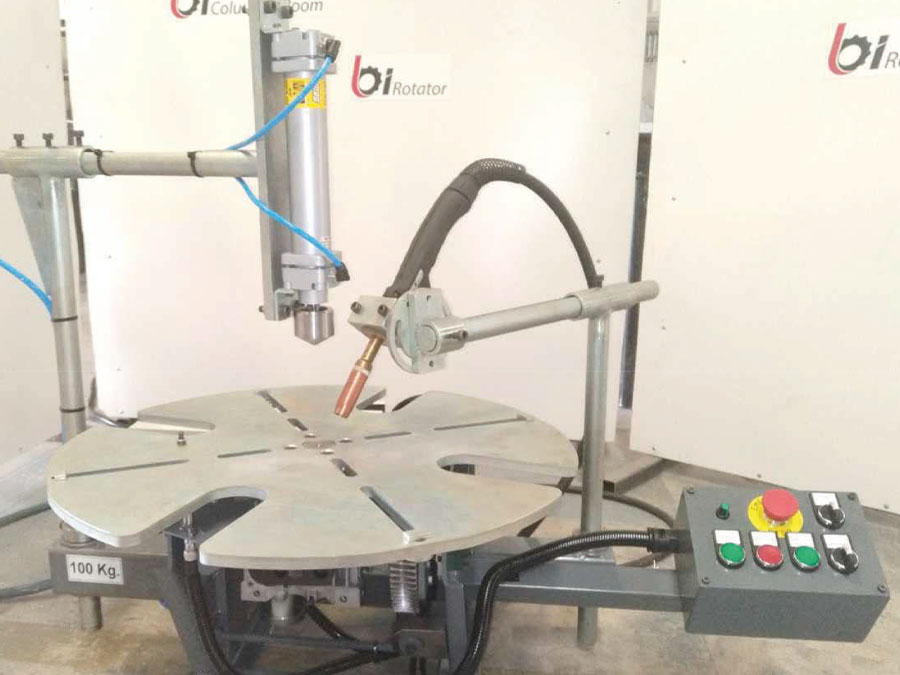

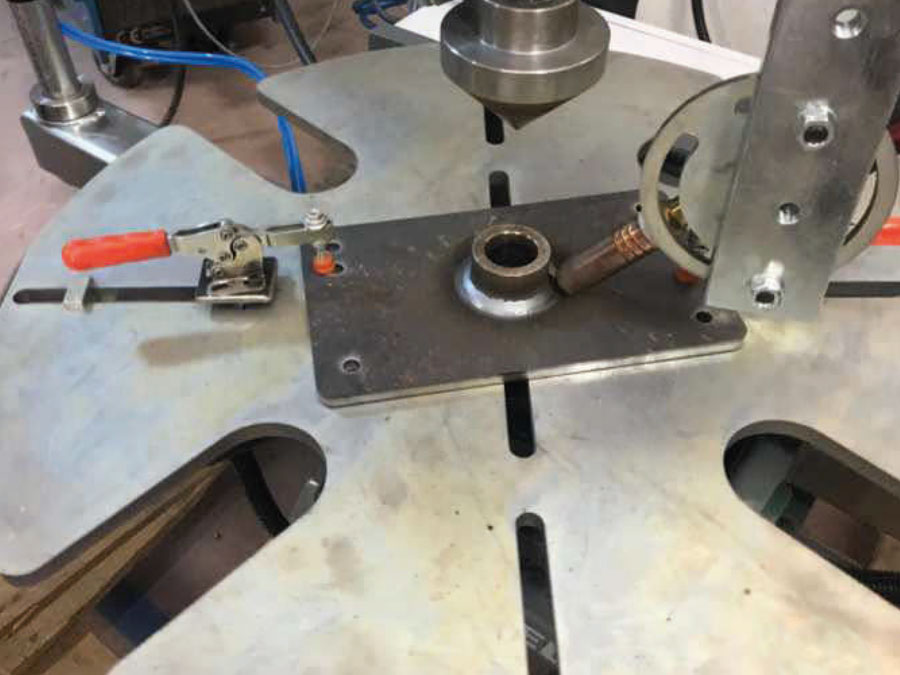

Pneumatic Pressing, Overlapping of welding at the end of cycle by time delay, Adjustment of Tilting Angle by means of Manuel HandWheel (0-90°) Manual adjustment of Torch holder Angle and Height, Ergonomic Table.

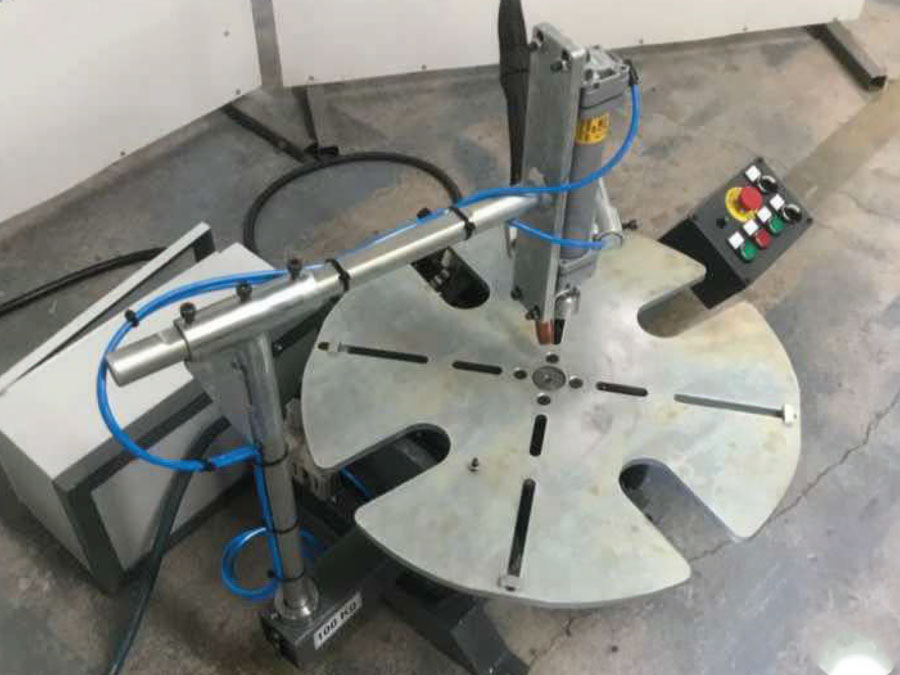

Round Worktable with Slots.

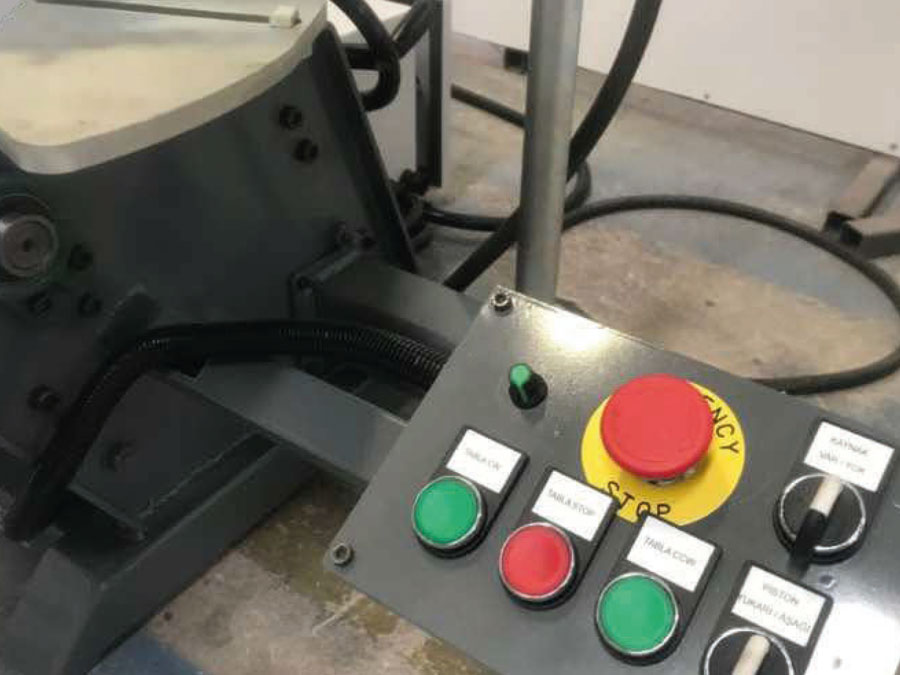

Adjustable worktable rotation speed by Potentiometer.
Manual Mechanical gear movement for tilting by Hand wheel. With opportunity of adjusting at every angle within range.
3m.Power Cable.
Standard Machine Colors:
• Chassis RAL 7011(Grey)
• Sheet Covers:RAL 3020(Red )
Power Supply : 220V – (2 phase) (DC Current)
One (1) Year Warranty

EN

Download Product Brochure

TR

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

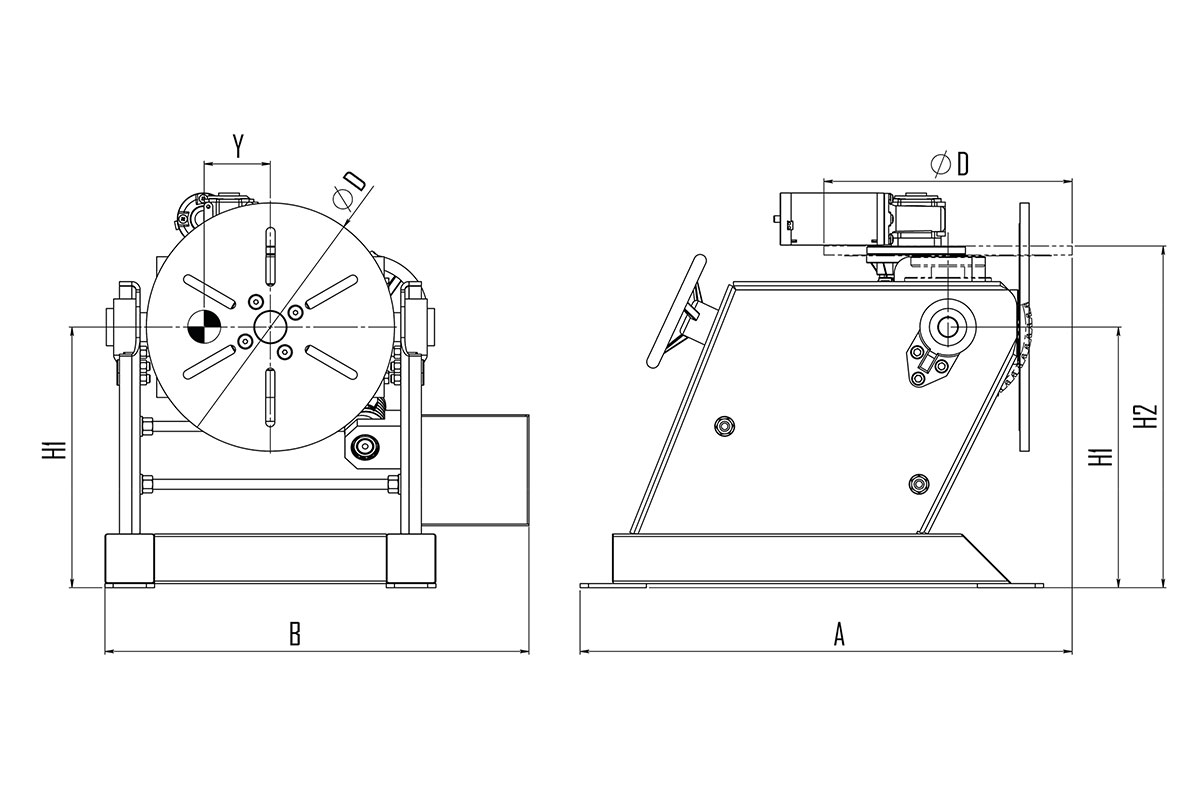

Mini-BCP010-SA	Sym	Unit	Mini-BCP010
Loading Capacity		kg	100
Rotation Speed		rpm	0 - 2,3
Max. Rotational Torque		Nm	86
Tilting Angle		deg	0 – 90°
Tilting Torque		Nm	Manual
Max.Welding Current	X-Y	mm	Y=50
Offset Distance	ØD	mm	300
Work Plate Diameter	H1	mm	315
Height (Table Vertical)	H2	mm	415
Height (Table Parallel)	A	mm	595
Length	B	mm	513
Width		mm	-
Motor Power of Table		kW	0,1(DC)
Tilting		kW	Manuel
Weight		kg	57
